LED Display/Dot Matrix

A dot matrix LED is a display device used to display information on machines, stock market, stadiums, bank, train and bus station display panels and many other devices requiring a simple display device of limited resolution.

The display consists of a dot matrix of lights or mechanical indicators arranged in a rectangular configuration such that by switching on or off selected lights, text or graphics can be displayed. A dot matrix controller converts instructions from a processor into signals which turns on or off lights in the matrix so that the required display is produced.

Dot matrix LED Displays are offered in a variety of array configuration packages such as 5*7, 5*8, 8*8, 16*16 and 32*16 options, and color choices include green, red, yellow, white, blue, orange, Bi-Color and RGB.

The parametric filters (▽) on our website can help refine your search results depending on the required specifications, but if you don’t see what you’re looking for please contact us.

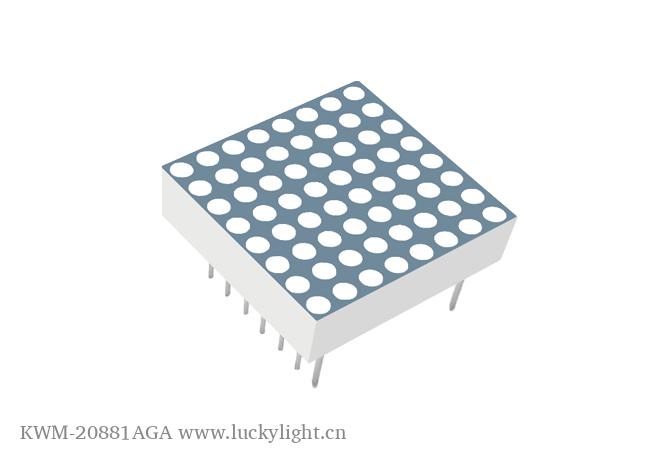

[PDF] KWM-20881AGA

  • 0.8 inch (20.0mm) Matrix height
  • 8 × 8 dot matrix font
  • Low power consumption
  • Categorized for luminous intensity
  • Choice of colors: Red or Green, etc
  • Choice of face paint colors: Gray or black
  • Design flexibility: Common row anode or common row cathode
  • RoHS Compliant

  • Indoor monochromatic display applications, used in variable message signs and static massage panels
  • Airport, train and bus station display panels
  • Electronic message centers---Stock market, department stores, stadiums, banks and cafes
  • Safety Signage---Factories and Hospitals
Emitting Color
Yellow Green
Face Color Gray
Dot Size(mm) Φ1.9
Polarity Row Anode
Luminous IntensityTyp.(mcd) 30.0
Array Type 8*8
