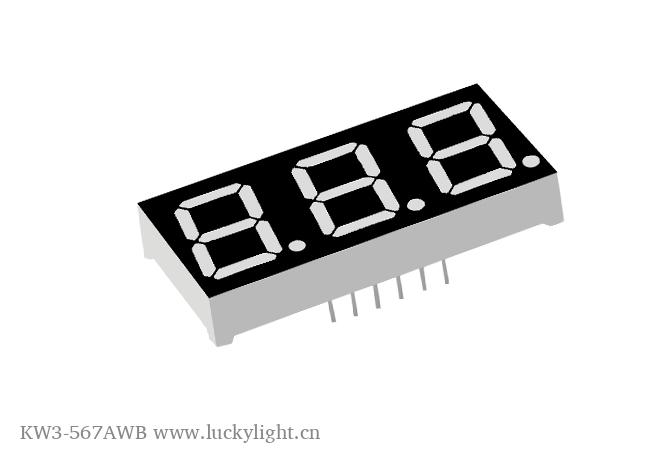

KW3-567AWB

LED Display/7-segment Display

Luckylight offers a full range of 7-segment displays ranging from standard brightness displays to ultra bright displays. Single Digit, Dual Digit, Three Digit and Four Digit displays are available in assorted character heights and colors.

Luckylight’s 7-segment LED displays are used in a wide variety of end products including test and measurement equipment, point-of-sale terminals, telecom systems, office equipment, consumer electronics, and medical equipment. Size options for Through Hole and surface mount packages include 7mm, 10mm, 14.2mm, 20.32mm, 25.4mm and 30.48mm. Color choices include green, red, yellow, white, blue and orange.

The highly integrated customization capability of Luckylight 7-segment displays also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.

Luckylight offers many kinds of 7-segment LED displays which are categorized by Digit Number, Polarity, Face Color and Emitting Color. The parametric filters () on our website can help refine your search results depending on the required specifications.

[PDF] KW3-567AWB
Features

  • 0.56" (inch) digit height
  • Low power consumption
  • High reliability
  • Excellent characters appearance
  • Available in common cathode or common anode
  • RoHS Compliant
Applications

  • Home appliances
  • Instrument panels
  • Digital readout displays
  • Game console systems
Specifications
Emitting Color
White
Face Color Black
Digit Height
inch(mm)
0.56(14.20)
Polarity Common Anode
Luminous IntensityTyp.(mcd) 130.0
λd(nm)
CIE(x,y)
x=0.30, y=0.31
Digit Number Three Digit
