Through-hole Cylindrical LEDs are suitable for all applications requiring instruments, switches, icon backlighting, and general status indication. There are 3 types of technology-based LEDs lamps. The chips with GaP technology are for low to moderate light output requirements, and the ones with AllnGaP and InGaN technologies are for high brightness light output.

Through-hole Cylindrical LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, with integrated built-in resistor or low current options, and color choices include green, red, yellow, white, blue and orange.

These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design are balanced to yield superior light output. Several intensity choices are available in each color for increasing design flexibility.

Select Product Line

Part Number View Picture Emitting Color

Resin Color

Size(mm)

Luminous
Intensity
Typ.(mcd)
Wavelength
λd(nm)

Viewing Angle
2 θ ½

DataSheet

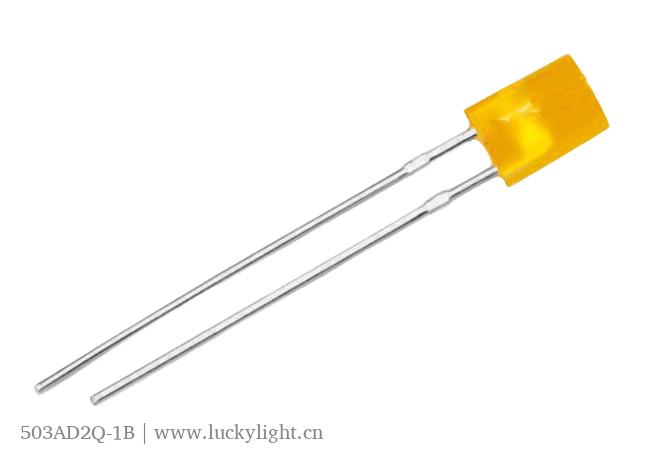

50xxx2QSeries 503AD2Q-1B
Super Bright Orange
Orange Diffused 5 90 605 130 Download

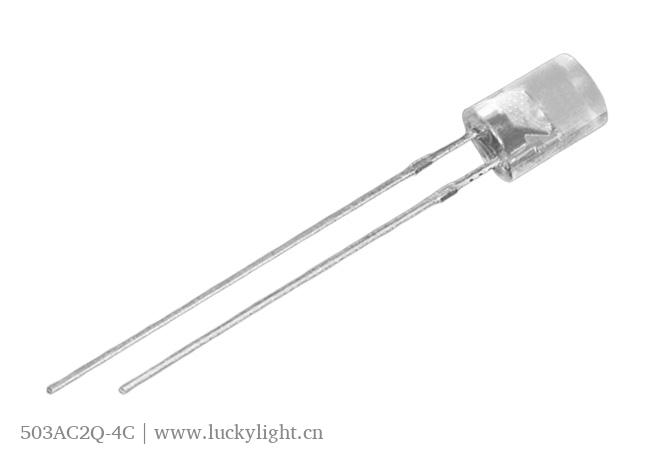

50xxx2QSeries 503AC2Q-4C
Super Bright Orange
Water Clear 5 780 605 110 Download
50xxx2QSeries 503AC2Q-2B
Super Bright Orange
Water Clear 5 270 605 110 Download

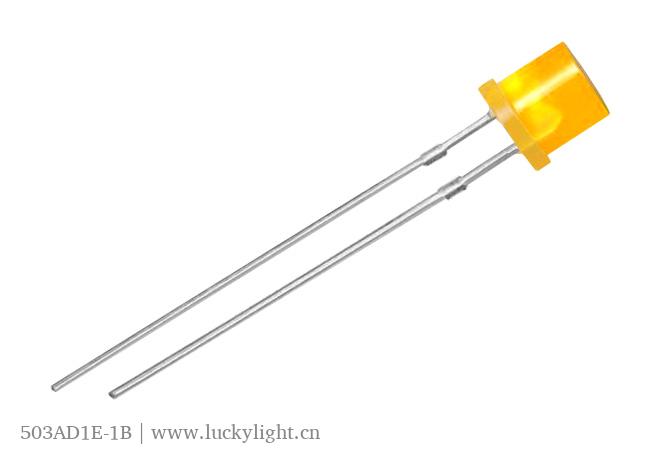

50xxx1E Series 503AD1E-1B
Super Bright Orange
Orange Diffused 5 120 605 130 Download

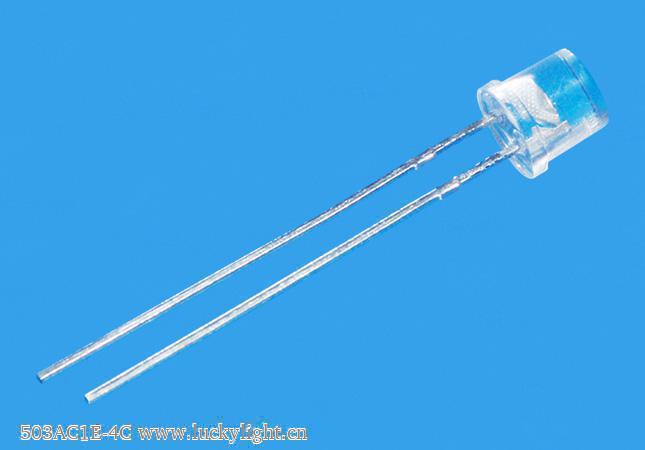

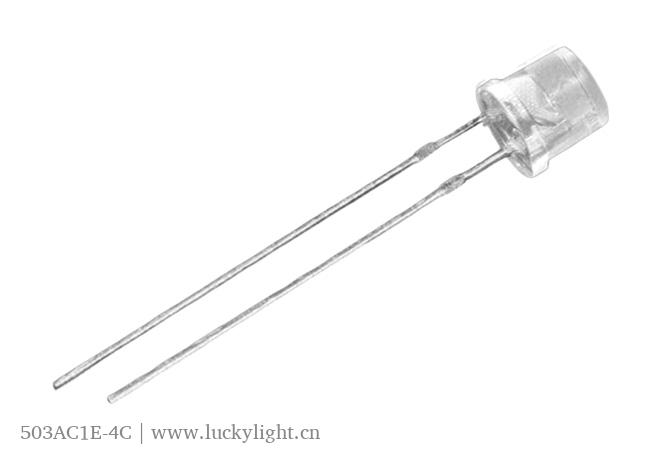

50xxx1E Series 503AC1E-4C
Super Bright Orange
Water Clear 5 780 605 110 Download
50xxx1E Series 503AC1E-2B
Super Bright Orange
Water Clear 5 210 605 110 Download
30xxx4J Series 304AD4J-1B
Super Bright Orange
Orange Diffused 3 90 605 130 Download
30xxx4J Series 304AC4J-4C
Super Bright Orange
Water Clear 3 600 605 110 Download
30xxx4J Series 304AC4J-2B
Super Bright Orange
Water Clear 3 160 605 110 Download

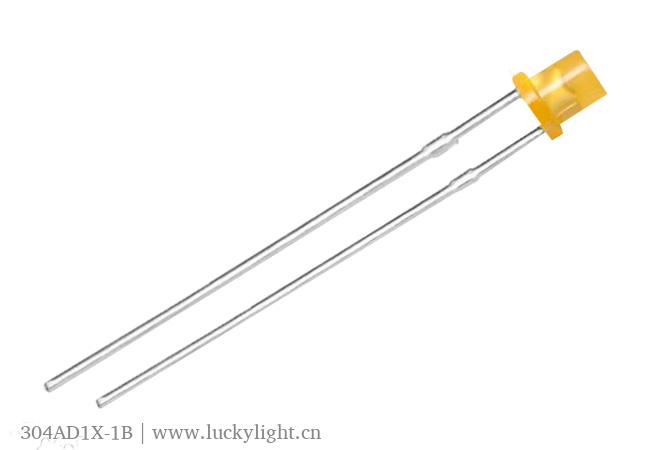

30xxx1X Series 304AD1X-1B
Super Bright Orange
Orange Diffused 3 160 605 130 Download
30xxx1X Series 304AC1X-4C
Super Bright Orange
Water Clear 3 600 605 110 Download
30xxx1X Series 304AC1X-2B
Super Bright Orange
Water Clear 3 120 605 110 Download

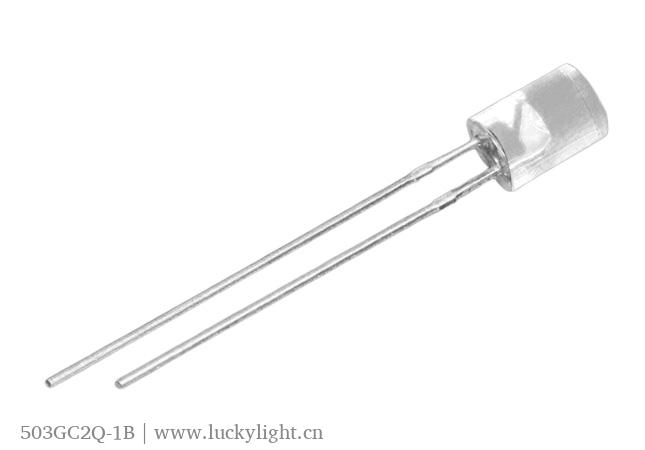

50xxx2QSeries 503GC2Q-1B
Super Yellow Green
Water Clear 5 70 571 110 Download

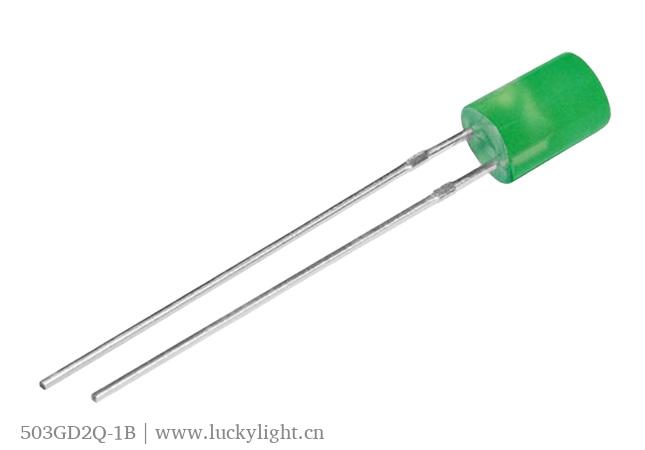

50xxx2QSeries 503GD2Q-1B
Super Yellow Green
Green Diffused 5 30 571 130 Download

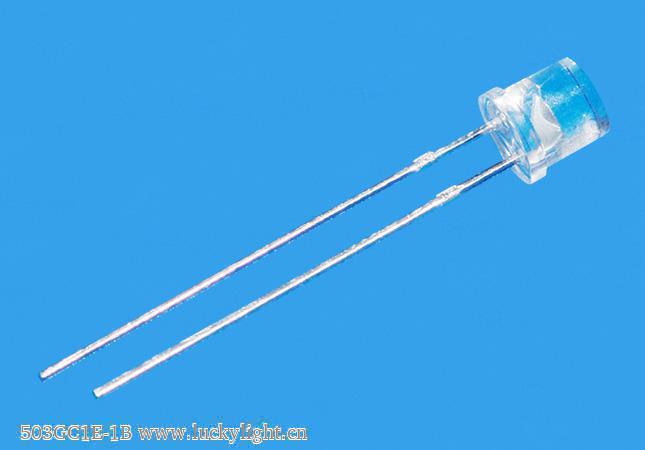

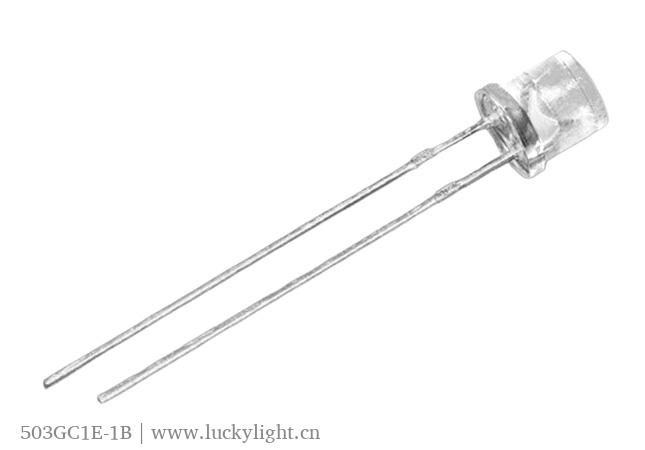

50xxx1E Series 503GC1E-1B
Super Yellow Green
Water Clear 5 45 571 110 Download
50xxx1E Series 503GD1E-1B
Super Yellow Green
Green Diffused 5 30 571 130 Download
30xxx4J Series 304GD4J-1B
Super Yellow Green
Green Diffused 3 45 571 130 Download

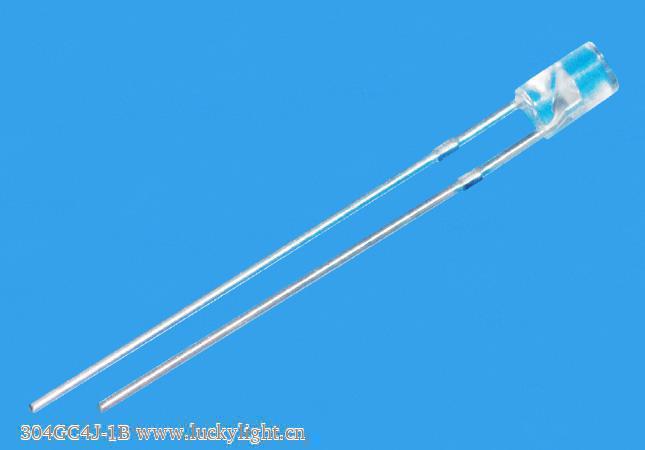

30xxx4J Series 304GC4J-1B
Super Yellow Green
Water Clear 3 70 571 110 Download
30xxx1X Series 304GD1X-1B
Super Yellow Green
Green Diffused 3 30 571 130 Download

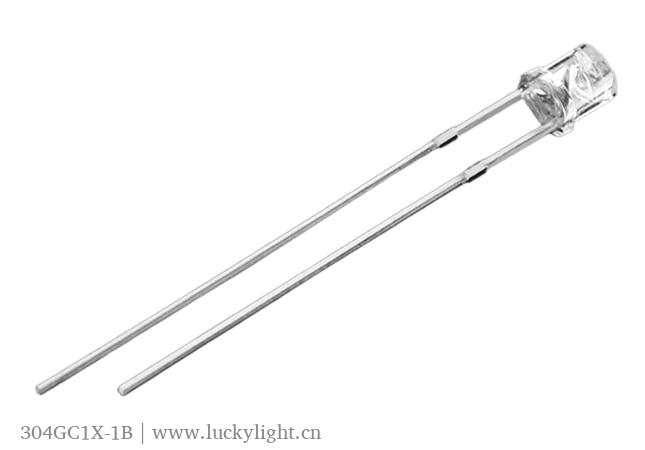

30xxx1X Series 304GC1X-1B
Super Yellow Green
Water Clear 3 45 571 110 Download

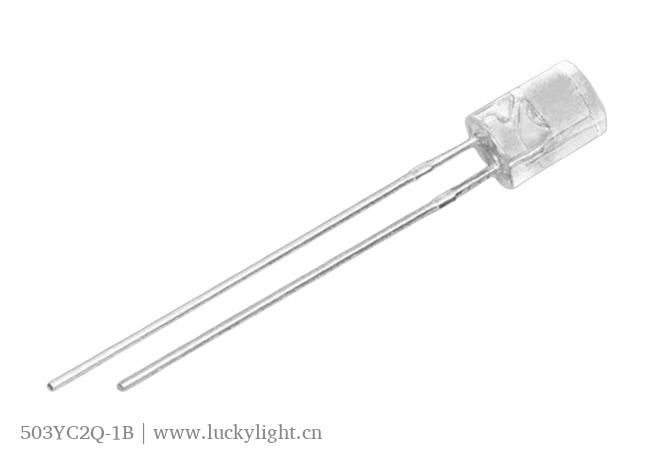

50xxx2QSeries 503YC2Q-1B
Super Bright Yellow
Water Clear 5 270 590 110 Download

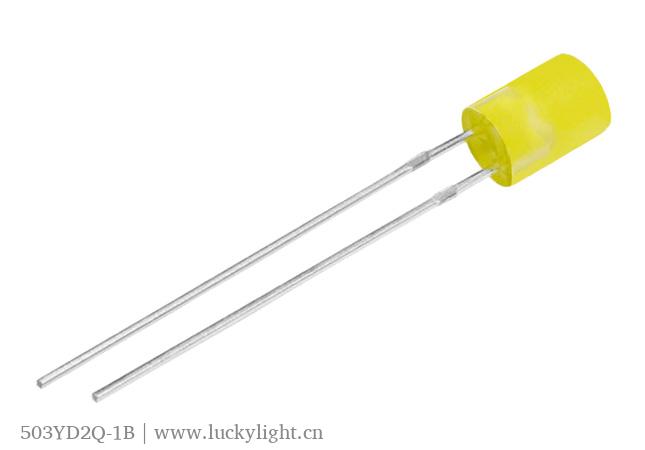

50xxx2QSeries 503YD2Q-1B
Super Bright Yellow
Yellow Diffused 5 120 590 130 Download

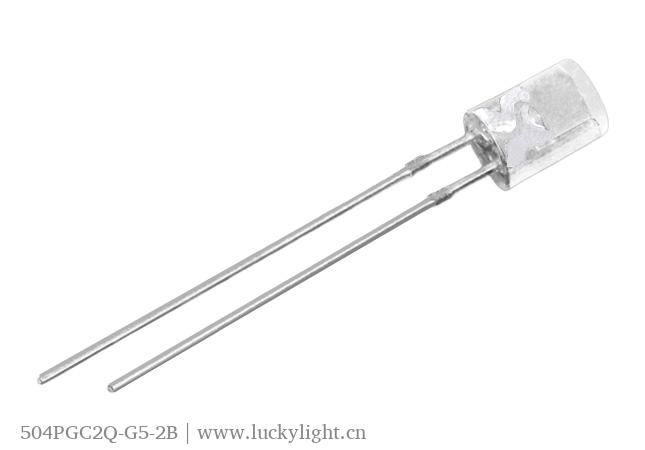

50xxx2QSeries 504PGC2Q-G5-2B
Pure Green
Water Clear 5 3800 525 100 Download

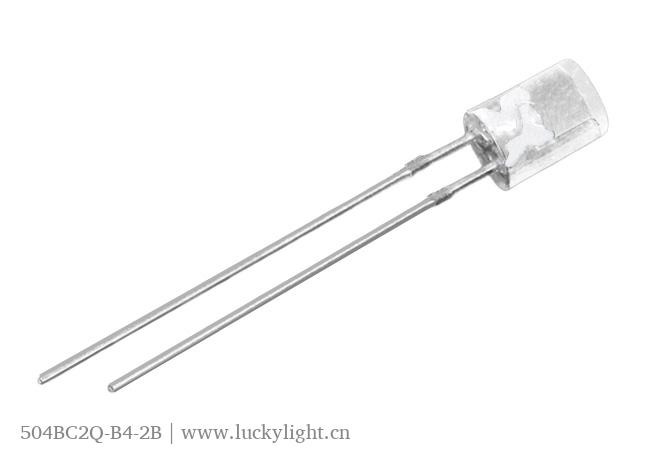

50xxx2QSeries 504BC2Q-B4-2B
Blue
Water Clear 5 780 470 100 Download
50xxx2QSeries 504PGD2Q-G5-2B
Pure Green
Green Diffused 5 1700 525 110 Download

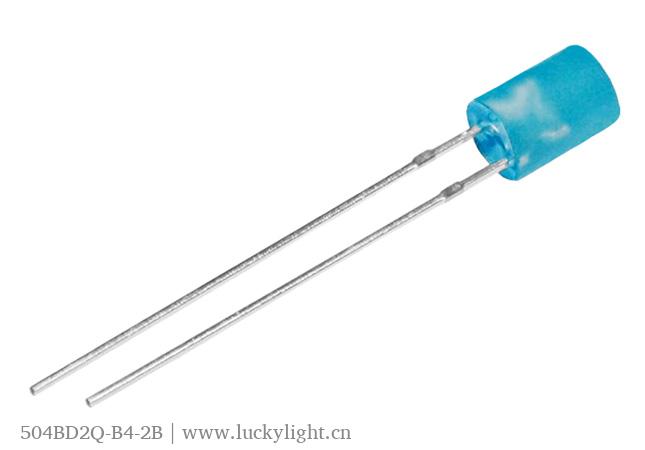

50xxx2QSeries 504BD2Q-B4-2B
Blue
Blue Diffused 5 270 470 110 Download

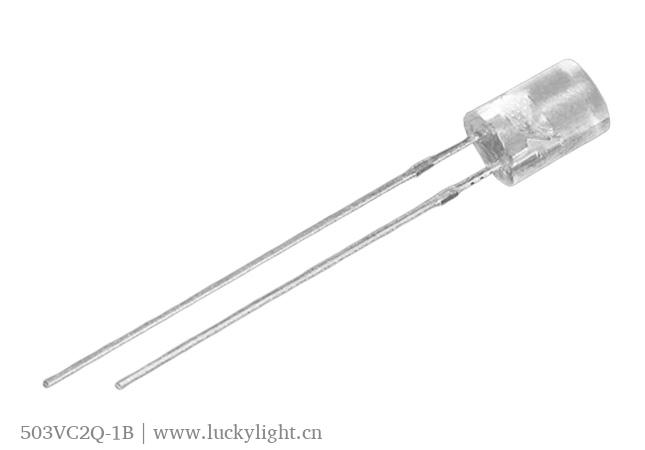

50xxx2QSeries 503VC2Q-1B
Super Bright Red
Water Clear 5 210 624 110 Download

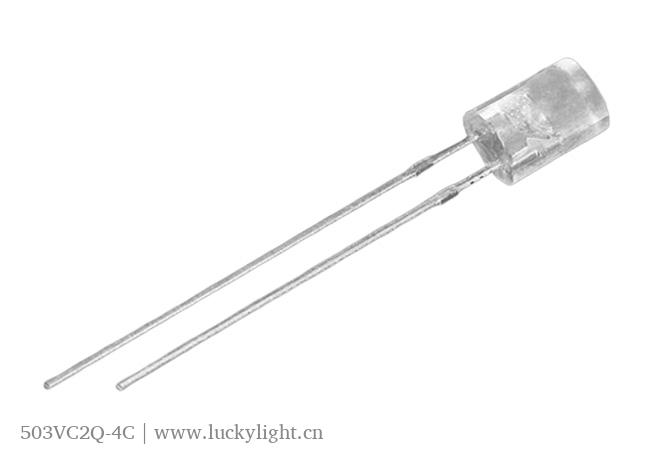

50xxx2QSeries 503VC2Q-4C
Super Bright Red
Water Clear 5 460 624 110 Download

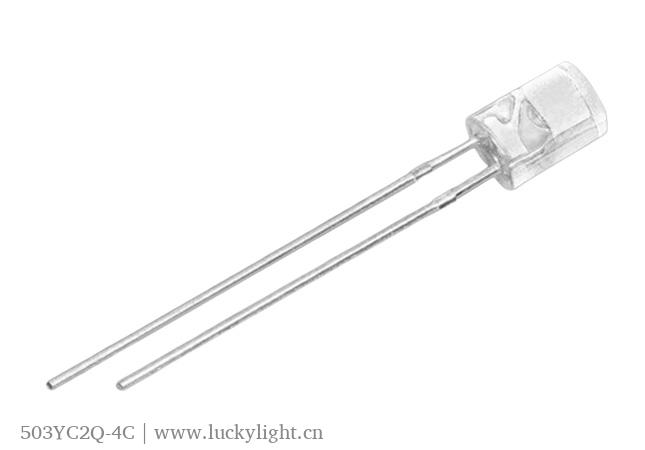

50xxx2QSeries 503YC2Q-4C
Super Bright Yellow
Water Clear 5 460 590 110 Download

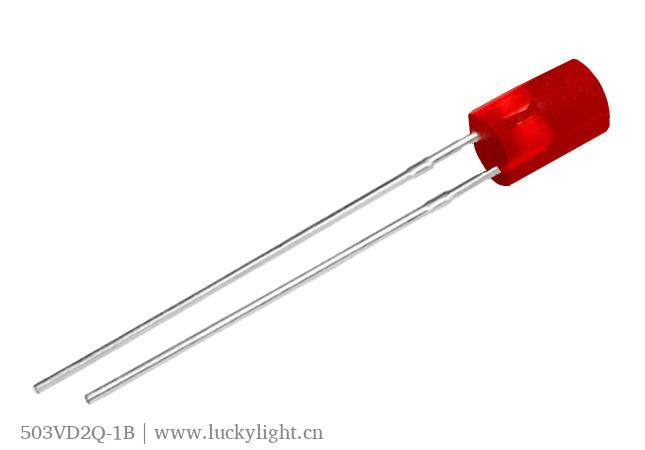

50xxx2QSeries 503VD2Q-1B
Super Bright Red
Red Diffused 5 120 624 130 Download

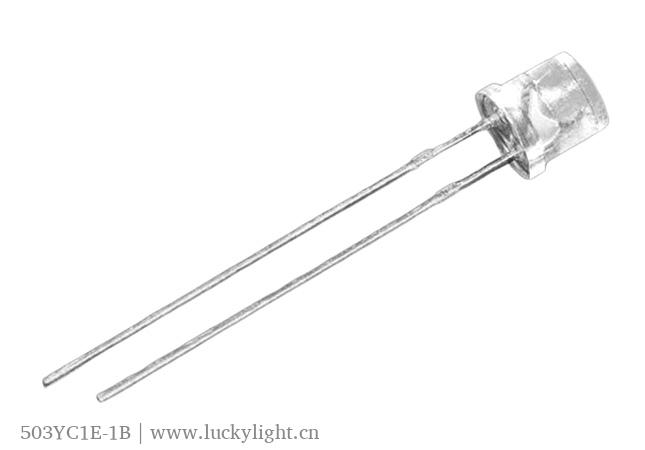

50xxx1E Series 503YC1E-1B
Super Bright Yellow
Water Clear 5 270 590 110 Download

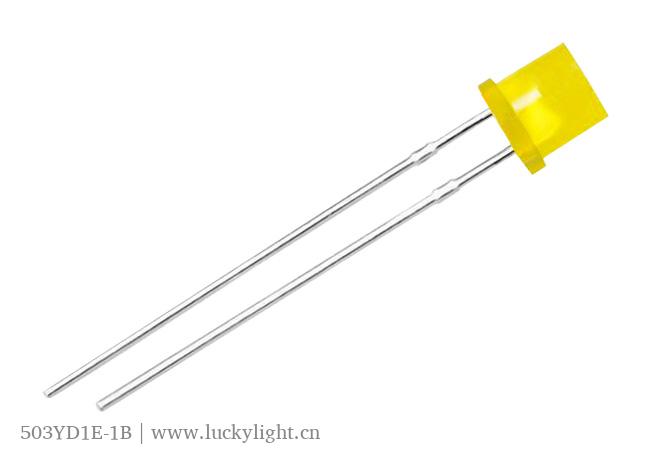

50xxx1E Series 503YD1E-1B
Super Bright Yellow
Yellow Diffused 5 120 590 130 Download

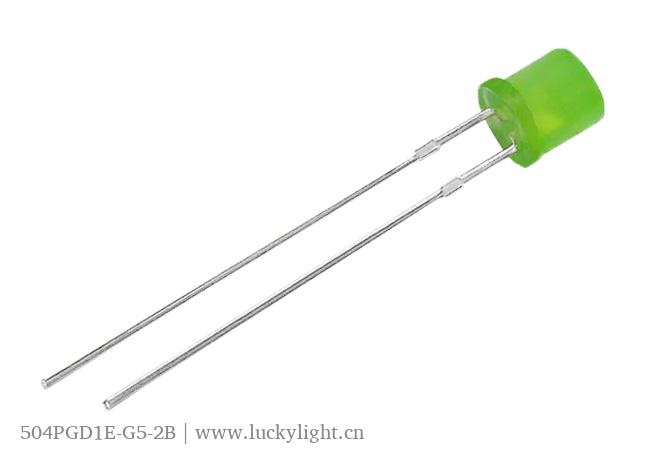

50xxx1E Series 504PGD1E-G5-2B
Pure Green
Green Diffused 5 1700 525 110 Download
50xxx1E Series 503VC1E-1B
Super Bright Red
Water Clear 5 210 624 110 Download

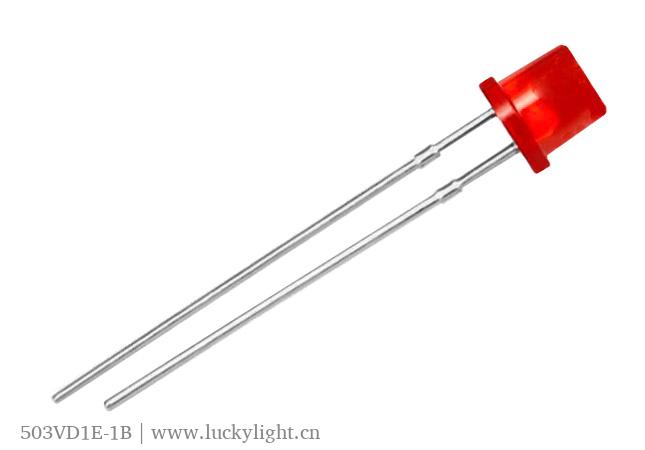

50xxx1E Series 503VD1E-1B
Super Bright Red
Red Diffused 5 120 624 130 Download

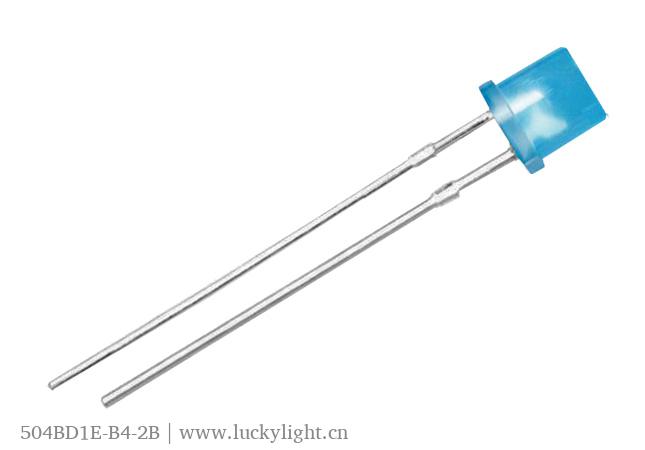

50xxx1E Series 504BD1E-B4-2B
Blue
Blue Diffused 5 350 470 110 Download

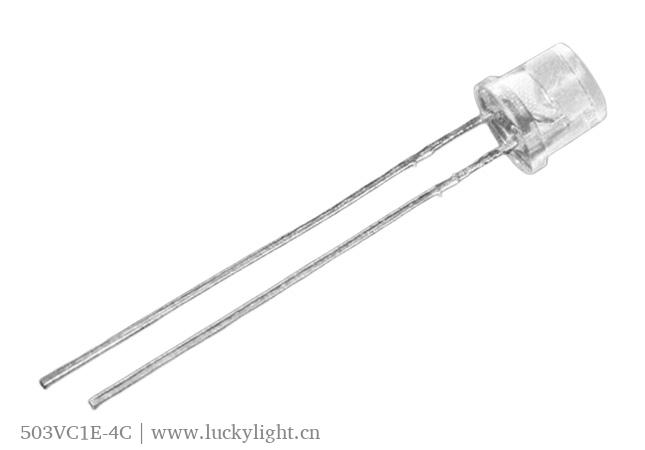

50xxx1E Series 503VC1E-4C
Super Bright Red
Water Clear 5 460 624 110 Download

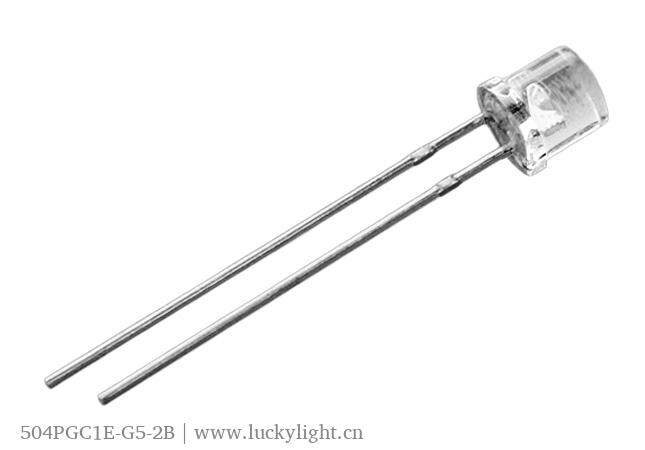

50xxx1E Series 504PGC1E-G5-2B
Pure Green
Water Clear 5 2200 525 100 Download

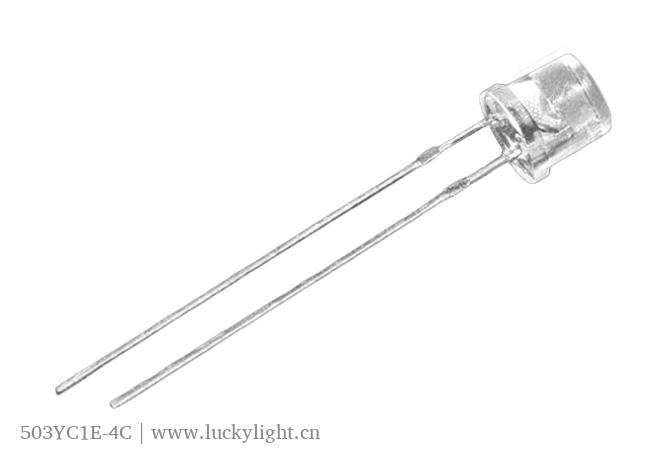

50xxx1E Series 503YC1E-4C
Super Bright Yellow
Water Clear 5 460 590 110 Download

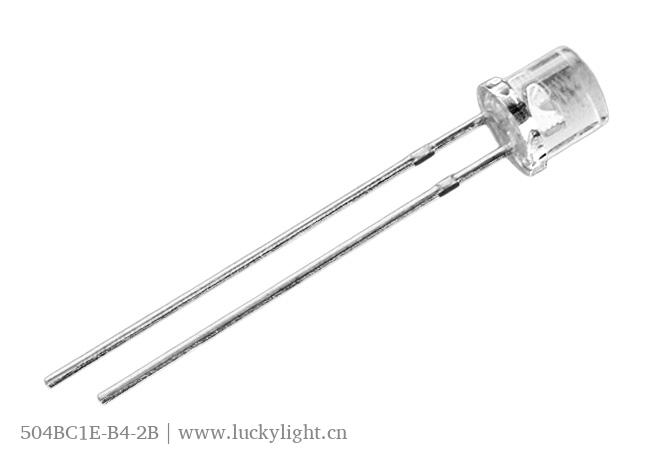

50xxx1E Series 504BC1E-B4-2B
Blue
Water Clear 5 780 470 100 Download

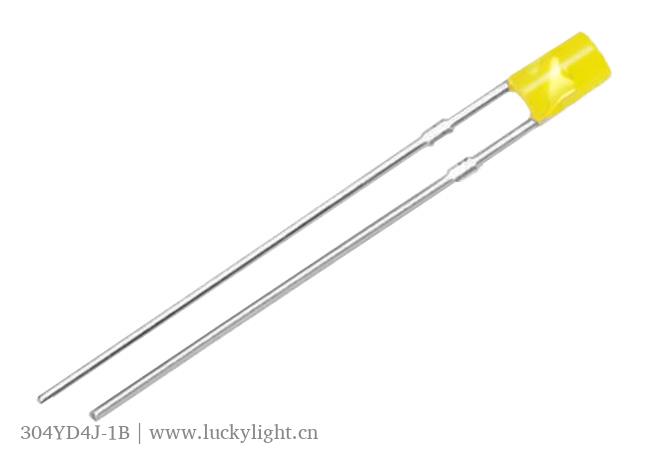

30xxx4J Series 304YD4J-1B
Super Bright Yellow
Yellow Diffused 3 120 590 130 Download

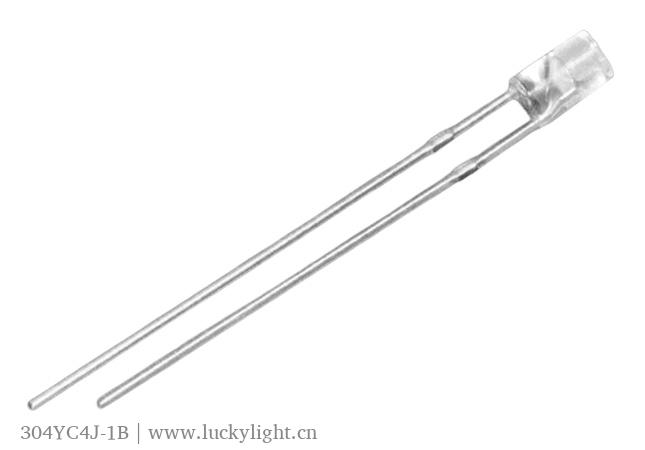

30xxx4J Series 304YC4J-1B
Super Bright Yellow
Water Clear 3 160 590 110 Download
30xxx4J Series 304VC4J-1B
Super Bright Red
Water Clear 3 270 624 110 Download

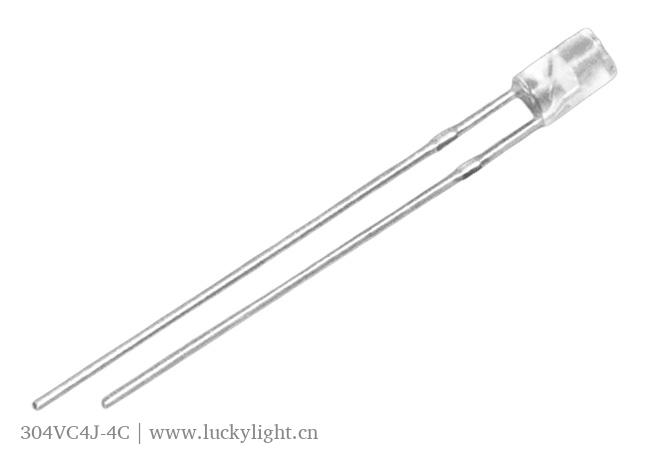

30xxx4J Series 304VC4J-4C
Super Bright Red
Water Clear 3 1000 624 110 Download
30xxx4J Series 304PGC4J-G5-2B
Pure Green
Water Clear 3 3800 525 100 Download
30xxx4J Series 304YC4J-4C
Super Bright Yellow
Water Clear 3 350 590 110 Download
30xxx4J Series 304BC4J-B4-2B
Blue
Water Clear 3 780 470 100 Download

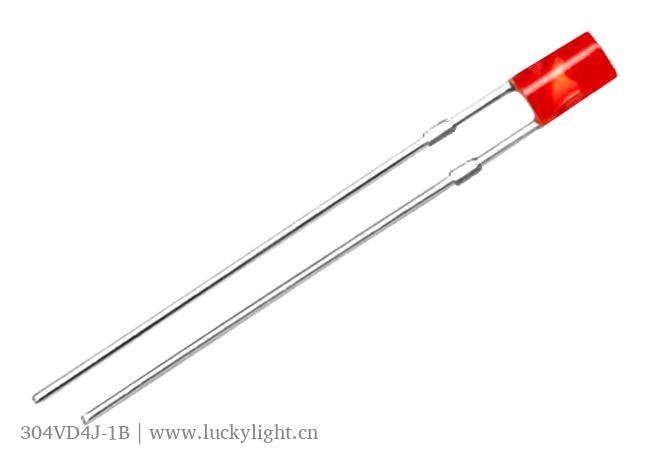

30xxx4J Series 304VD4J-1B
Super Bright Red
Red Diffused 3 120 624 130 Download
30xxx4J Series 304PGD4J-G5-2B
Pure Green
Green Diffused 3 2200 525 110 Download
30xxx4J Series 304BD4J-B4-2B
Blue
Blue Diffused 3 350 470 110 Download
