Luckylight offers an extensive range of high quality Right Angle SMD LEDs which are small in size, high efficiency and low power consumption. Designed to illuminate at a right angle to the direction of mounting, when mounted on a PC board, these devices emit light in a direction parallel to the board.

Right Angle SMD LEDs products are divided into Chip LEDs (PCB) and PLCC LEDs (reflector) configurations. Colors are available in blue, green, yellow, orange, red and white. These devices are packaged in automation-friendly tape and reel to increase productivity and reduce assembly cost.

Right Angle SMD chip LED products come in a small package footprint. Its small form factor allows flexible board design, and the LED can be closely mounted, offering maximum miniaturization benefits to the user. The low packages height makes it an ideal solution for applications that have limited head room, such as wearables and small, portable handheld devices. By utilizing efficient and high brightness AlInGaP materials, the products are capable of delivering high light output.

Right Angle SMD PLCC LED products are a side emitting, surface mount LED. These profiles allow effective optical coupling to light guides for applications such as LCD and push button backlighting, which requires high brightness and uniform light distribution. Right Angle SMD PLCC LED products use silicone encapsulate which significantly enhances its longer lifetime performance.

Select Product Line

Part Number View Picture Emitting Color

Resin Color Size(mm)
(L*W*H)

Luminous
Intensity
Typ.(mcd)
Wavelength
λd(nm)

Viewing Angle
2 θ ½

DataSheet

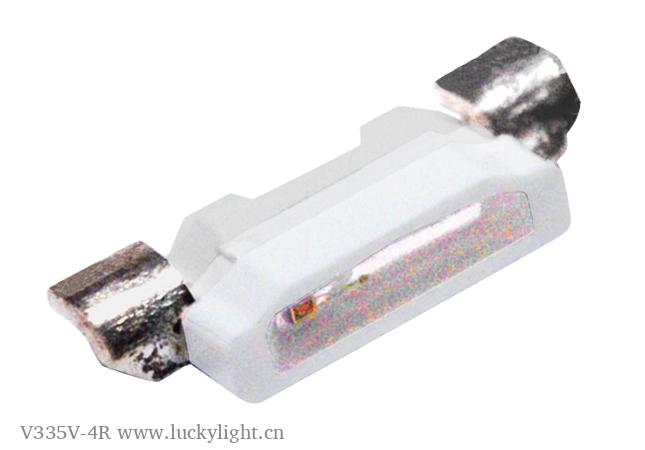

V335xx Series V335V-4R
Super Bright Red
Water Clear 4.00*0.80*1.40 500 624 120 Download
V335xx Series V335Y-4R
Super Bright Yellow
Water Clear 4.00*0.80*1.40 550 590 120 Download
V335xx Series V335G-2R
Yellow Green
Water Clear 4.00*0.80*1.40 70 571 120 Download
V335xx Series V335PG-1R5
Pure Green
Water Clear 4.00*0.80*1.40 1300 525 120 Download
V335xx Series V335B-1R4
Blue
Water Clear 4.00*0.80*1.40 300 470 120 Download
V335xx Series V335A-2R
Super Bright Orange
Water Clear 4.00*0.80*1.40 250 605 120 Download
V020xx Series V020PG-1R5
Pure Green
Water Clear 3.80*0.60*1.00 1000 525 120 Download
V020xx Series V020V-4R
Super Bright Red
Water Clear 3.80*0.60*1.00 500 624 120 Download
V020xx Series V020Y-4R
Super Bright Yellow
Water Clear 3.80*0.60*1.00 550 590 120 Download
S11Pxx Series S11PAC-2BE
Super Bright Orange
Water Clear 3.00*1.00*2.00 150 605 120 Download
V020xx Series V020B-1R4
Blue
Water Clear 3.80*0.60*1.00 450 470 120 Download
S11Fxx Series S11FBC-B4-1BE
Blue
Water Clear 2.10*0.60*1.00 40 470 130 Download
S11Fxx Series S11FPGC-G5-1BE
Pure Green
Water Clear 2.10*0.60*1.00 150 525 130 Download
S11Fxx Series S11FGC-2BE
Yellow Green
Water Clear 2.10*0.60*1.00 30 573 130 Download
S11Fxx Series S11FYC-2BE
Super Bright Yellow
Water Clear 2.10*0.60*1.00 60 590 130 Download
S11Fxx Series S11FVC-2BE
Super Bright Red
Water Clear 2.10*0.60*1.00 60 624 130 Download
S11Pxx Series S11PBC-B4-1BE
Blue
Water Clear 3.00*1.00*2.00 80 470 120 Download
S11Pxx Series S11PGC-2BE
Yellow Green
Water Clear 3.00*1.00*2.00 40 573 120 Download
S11Pxx Series S11PPGC-G5-1BE
Pure Green
Water Clear 3.00*1.00*2.00 250 525 120 Download
S11Pxx Series S11PYC-2BE
Super Bright Yellow
Water Clear 3.00*1.00*2.00 120 590 120 Download
S11Pxx Series S11PVC-2BE
Super Bright Red
Water Clear 3.00*1.00*2.00 100 624 120 Download
S11Bxx Series S11BBC-B4-1BB
Blue
Water Clear 3.20*1.00*1.70 80 470 120 Download
S11Bxx Series S11BPGC-G5-1BB
Pure Green
Water Clear 3.20*1.00*1.70 350 525 120 Download
S11Bxx Series S11BGC-2BB
Yellow Green
Water Clear 3.20*1.00*1.70 50 573 120 Download
S11Bxx Series S11BYC-2BB
Super Bright Yellow
Water Clear 3.20*1.00*1.70 150 590 120 Download
S11Bxx Series S11BVC-2BB
Super Bright Red
Water Clear 3.20*1.00*1.70 120 624 120 Download
S110xx Series S110BC-B4-1BS
Blue
Water Clear 3.20*1.00*1.50 120 470 120 Download
S110xx Series S110PGC-G5-1BS
Pure Green
Water Clear 3.20*1.00*1.50 600 525 120 Download
S110xx Series S110GC-2BS
Yellow Green
Water Clear 3.20*1.00*1.50 45 573 120 Download
S110xx Series S110YC-2BS
Super Bright Yellow
Water Clear 3.20*1.00*1.50 150 590 120 Download
S110xx Series S110VC-2BS
Super Bright Red
Water Clear 3.20*1.00*1.50 150 624 120 Download
