COB (Chips on Board) LED is a new technology of LED packaging for LED light device. COB LEDs offer many advantages over the standard options. COB LEDs are basically multiple LED chips bonded directly to a substrate by the manufacturer to form a single module. Since the individual LEDs used in a COB are chips and not traditionally packaged, the LED chips can be mounted such that they take up less space and the highest potential of the LED chips can be obtained. When the COB LED package is energized, it appears more like a lighting panel than multiple individual lights as would be the case when using several SMD LEDs mounted closely together.

The application possibilities for COB LEDs encompass a wide range. While these devices could be used for higher output general lighting, the primary use for COB LEDs would be as solid-state lighting (SSL) replacements for metal-halide lamps in applications such as high-bay lighting, street lights, and high-output track lights and downlights.

Luckylight offers many different kinds of COB LEDs, which are categorized by Forward (Driven) Current, Flux, Power (watt), Color Temperature and CRI. The parametric filters on our website can help refine your search results depending on the required specifications.

Select Product Line

Part Number View Picture Color

Size(mm)
(L*W*H)

Power
(W)

Flux
Typ.(lm)

VF
(V)

IF
(mA)

CCT
(K)

CRI
Min.

DataSheet
HP560400Wx-xx Series HP560400W2-50W
Cool White
56*40*4.3 50 5500 34 1750 6500 70 Download
HP560400Wx-xx Series HP560400W2-30W
Cool White
56*40*4.3 30 3400 34 1050 6500 70 Download

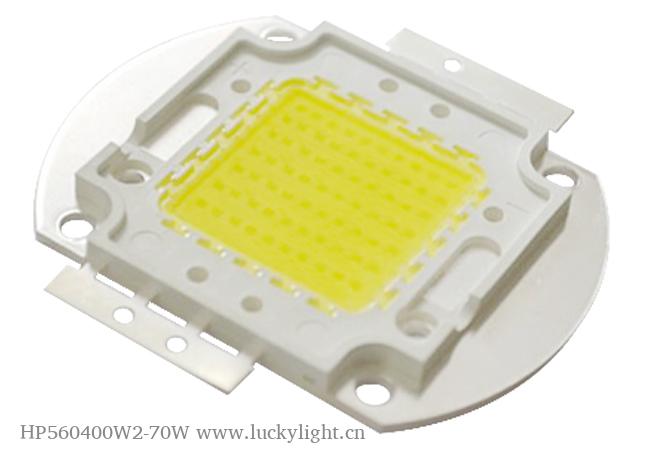

HP560400Wx-xx Series HP560400W2-70W
Cool White
56*40*4.3 70 8400 34 2450 6500 70 Download
HP560400Wx-xx Series HP560400W2-100W
Cool White
56*40*4.3 100 11000 34 3500 6500 70 Download
PB1616Wxx Series PB1616W6-8W
Warm White
16*16*1.8 8 850 26 320 3000 80 Download
PB1616Wxx Series PB1616W5-8W
Neutral White
16*16*1.8 8 900 26 320 4200 80 Download
PB1616Wxx Series PB1616W2-8W
Cool White
16*16*1.8 8 950 26 320 6500 80 Download

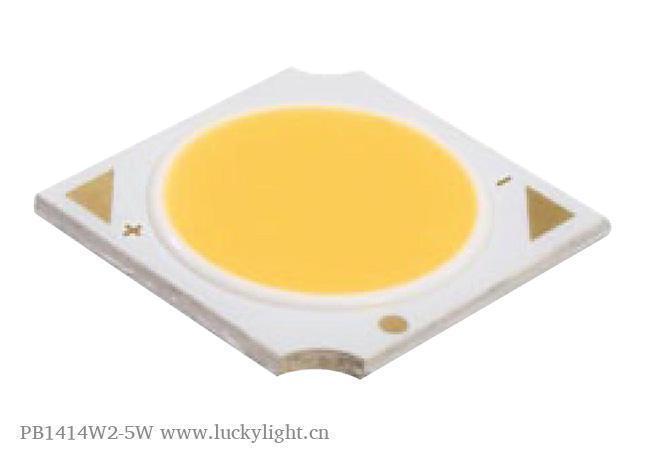

PB1414Wxx Series PB1414W2-5W
Cool White
13.5*13.5*1.65 5 600 16.5 320 6500 80 Download
PB1414Wxx Series PB1414W6-5W
Warm White
13.5*13.5*1.65 5 550 16.5 320 3000 80 Download
PB1414Wxx Series PB1414W5-5W
Neutral White
13.5*13.5*1.65 5 600 16.5 320 4200 80 Download
PBC20-11Wxx Series PBC20-11W2-9W
Cool White
Φ20-11 9 1050 27 320 6500 80 Download
PBC20-11Wxx Series PBC20-11W5-9W
Neutral White
Φ20-11 9 1000 27 320 4200 80 Download
PBC20-11Wxx Series PBC20-11W6-9W
Warm White
Φ20-11 9 950 27 320 3000 80 Download
Show More Results
