Through-hole Rectangular LEDs are suitable for all applications requiring instruments, switches, icon backlighting, and general status indication. There are 3 types of technology-based LEDs lamps. The chips with GaP technology are for low to moderate light output requirements, and the ones with AllnGaP and InGaN technologies are for high brightness light output.

Through-hole Rectangular LEDs are offered in a variety of packages such as 1.0*5.0mm, 2*3mm, 1.9*3.9mm, 2*5mm, 3*3mm, 3.7*6.3mm, 5*5mm, with integrated built-in resistor or low current options, and color choices include green, red, yellow, white, blue and orange.

These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design are balanced to yield superior light output. Several intensity choices are available in each color for increasing design flexibility.

Select Product Line

Part Number View Picture Emitting Color

Resin Color

Size(mm)

Luminous
Intensity
Typ.(mcd)
Wavelength
λd(nm)

Viewing Angle
2 θ ½

DataSheet
23xxx2Q Series 234YD2Q-1B
Super Bright Yellow
Yellow Diffused 2*3 70 590 130 Download
23xxx2Q Series 234GD2Q-1B-L54
Super Yellow Green
Green Diffused 2*3 45 571 130 Download
23xxx2Q Series 234YD2Q-1B-L54
Super Bright Yellow
Yellow Diffused 2*3 70 590 130 Download
23xxx2Q Series 234AD2Q-1B-L54
Super Bright Orange
Orange Diffused 2*3 90 605 130 Download
23xxx2Q Series 234VD2Q-1B-L54
Super Bright Red
Red Diffused 2*3 120 624 130 Download
23xxx2Q Series 234VD2Q-1B
Super Bright Red
Red Diffused 2*3 120 624 130 Download
23xxx2Q Series 234AD2Q-1B
Super Bright Orange
Orange Diffused 2*3 90 605 130 Download
25xxx1F Series 253GD1F-1B
Super Yellow Green
Green Diffused 2*5 30 571 130 Download
25xxx1G Series 253GD1G-1B
Super Yellow Green
Green Diffused 2*5 20 571 130 Download
463xxS Series 463YDS
Super Bright Yellow
Yellow Diffused 6.3*3.7 45 590 110 Download

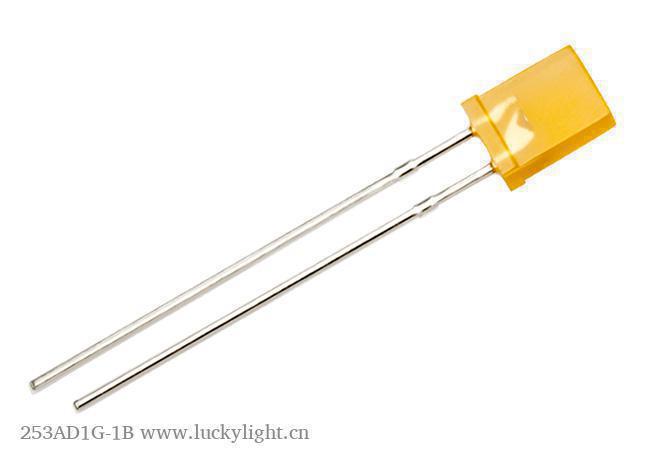

25xxx1G Series 253AD1G-1B
Super Bright Orange
Orange Diffused 2*5 70 605 130 Download
25xxx1F Series 253AD1F-1B
Super Bright Orange
Orange Diffused 2*5 45 605 130 Download
23xxx2Q Series 234AC2Q-2B
Super Bright Orange
Water Clear 2*3 210 605 130 Download
463xxS Series 463VDS
Super Bright Red
Red Diffused 6.3*3.7 45 624 110 Download
463xxS Series 463GDS
Super Yellow Green
Green Diffused 6.3*3.7 12 571 110 Download
25xxx1G Series 254PGD1G-G5-2B
Pure Green
Green diffused 2*5 1300 525 130 Download
25xxx1G Series 254BD1G-B4-2B
Blue
Blue Diffused 2*5 270 470 130 Download
25xxx1G Series 253VD1G-1B
Super Bright Red
Red Diffused 2*5 90 624 130 Download
25xxx1G Series 253YD1G-1B
Super Bright Yellow
Yellow Diffused 2*5 45 590 130 Download
25xxx1F Series 254PGD1F-G5-2B
Pure Green
Green diffused 2*5 1000 525 130 Download
25xxx1F Series 254BD1F-B4-2B
Blue
Blue Diffused 2*5 270 470 130 Download
25xxx1F Series 253VD1F-1B
Super Bright Red
Red Diffused 2*5 120 624 130 Download
25xxx1F Series 253YD1F-1B
Super Bright Yellow
Yellow Diffused 2*5 70 590 130 Download
23xxx2Q Series 234PGD2Q-G5-2B
Pure Green
Green Diffused 2*3 2200 525 130 Download
23xxx2Q Series 234BD2Q-B4-2B
Blue
Blue Diffused 2*3 270 470 130 Download
23xxx2Q Series 234PGC2Q-G5-2B
Pure Green
Water Clear 2*3 2900 525 130 Download
23xxx2Q Series 234BC2Q-B4-2B
Blue
Water Clear 2*3 780 470 130 Download
23xxx2Q Series 234VC2Q-2B
Super Bright Red
Water Clear 2*3 160 624 130 Download
23xxx2Q Series 234YC2Q-2B
Super Bright Yellow
Water Clear 2*3 160 590 130 Download
23xxx2Q Series 234GD2Q-1B
Super Yellow Green
Green Diffused 2*3 45 571 130 Download
