Through-hole Multi-Color LEDs are suitable for all applications requiring instruments, switches, icon backlighting, status indication and more. Through-hole Multi-Color LEDs are offered in a variety of packages such as 3mm, 5mm, 8mm, 2*5mm rectangular and Cylindrical type LEDs.

Through-hole Bi-Color LEDs are available in red-green, yellow-green color combinations. They contain two integral chips which are bi-color and bi-polar types. Through-hole Tri-Color LEDs are available in RGB and red-green-yellow color combinations.

These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Diffused and Water Clear are balanced to yield superior light output and wide viewing angles.

Whether you’re looking for a Tri-color LED or Bi-color LED, Luckylight can help. Browse our selection, but if you don’t see what you’re looking for please contact us.

Select Product Line

Part Number View Picture Emitting Color

Resin Color

Size(mm)

Luminous
Intensity
Typ.(mcd)
Wavelength
λd(nm)

Viewing Angle
2 θ ½

DataSheet

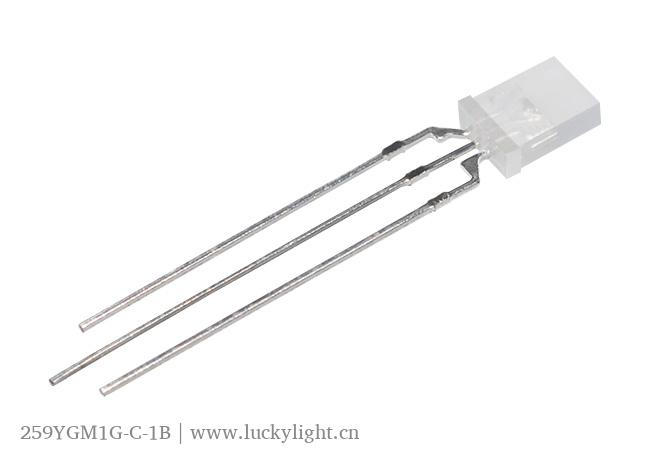

259xx1G Series 259YGM1G-C-1B
  • Super Bright Yellow
  • Super Yellow Green
White Diffused 2*5
  • 90
  • 30
  • 590
  • 571
  • 120
  • 120
Download
259xx1G Series 259VGM1G-C-1B
  • Super Bright Red
  • Super Yellow Green
White Diffused 2*5
  • 90
  • 30
  • 624
  • 571
  • 120
  • 120
Download
257xx1G Series 257VGM1G-1B
  • Super Bright Red
  • Super Yellow Green
White Diffused 2*5
  • 70
  • 13
  • 624
  • 571
  • 150
  • 150
Download

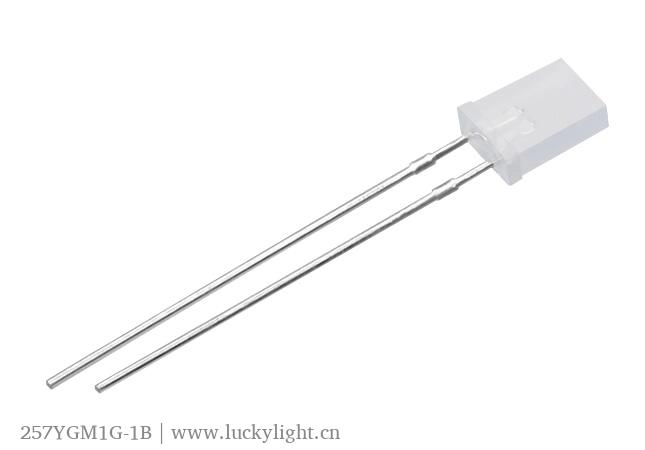

257xx1G Series 257YGM1G-1B
  • Super Bright Yellow
  • Super Yellow Green
White Diffused 2*5
  • 70
  • 20
  • 590
  • 571
  • 150
  • 150
Download

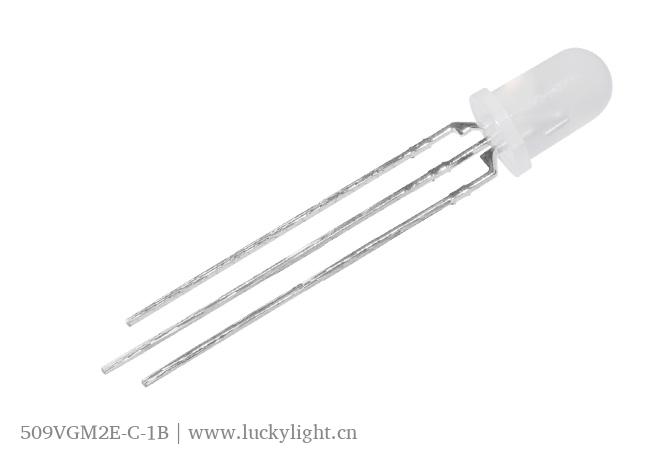

509xx2E Series 509VGM2E-C-1B
  • Super Bright Red
  • Super Yellow Green
White Diffused 5
  • 260
  • 70
  • 624
  • 571
  • 60
  • 60
Download
509xx2E Series 509YGM2E-C-1B
  • Super Bright Yellow
  • Super Yellow Green
White Diffused 5
  • 390
  • 110
  • 590
  • 571
  • 60
  • 60
Download

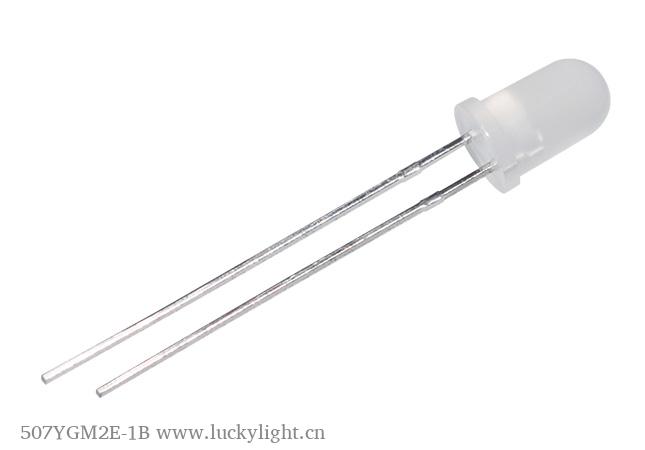

507xx2E Series 507YGM2E-1B
  • Super Bright Yellow
  • Super Yellow Green
White Diffused 5
  • 90
  • 30
  • 590
  • 571
  • 60
  • 60
Download

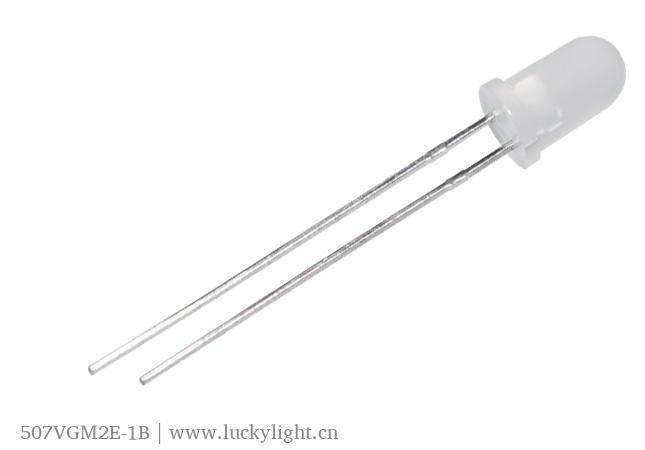

507xx2E Series 507VGM2E-1B
  • Super Bright Red
  • Super Yellow Green
White Diffused 5
  • 170
  • 70
  • 624
  • 571
  • 60
  • 60
Download
309xx2E Series 309VGM2E-C-1B
  • Super Bright Red
  • Super Yellow Green
White Diffused 3
  • 260
  • 110
  • 624
  • 571
  • 60
  • 60
Download

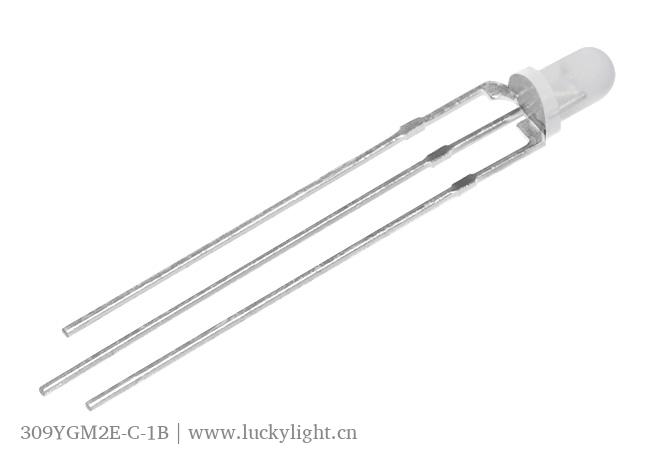

309xx2E Series 309YGM2E-C-1B
  • Super Bright Yellow
  • Super Yellow Green
White Diffused 3
  • 170
  • 110
  • 590
  • 571
  • 60
  • 60
Download
307xx2E Series 307YGM2E-1B
  • Super Bright Yellow
  • Super Yellow Green
White Diffused 3
  • 90
  • 45
  • 590
  • 571
  • 60
  • 60
Download

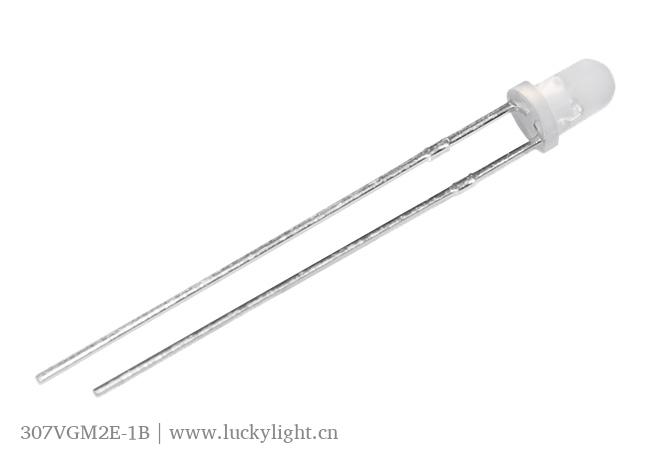

307xx2E Series 307VGM2E-1B
  • Super Bright Red
  • Super Yellow Green
White Diffused 3
  • 170
  • 45
  • 624
  • 571
  • 60
  • 60
Download
509RGBx2E Series 509RGBM2E-004
  • Super Bright Red
  • Pure Green
  • Blue
White Diffused 5
  • 600
  • 1000
  • 500
  • 624
  • 525
  • 470
60 Download

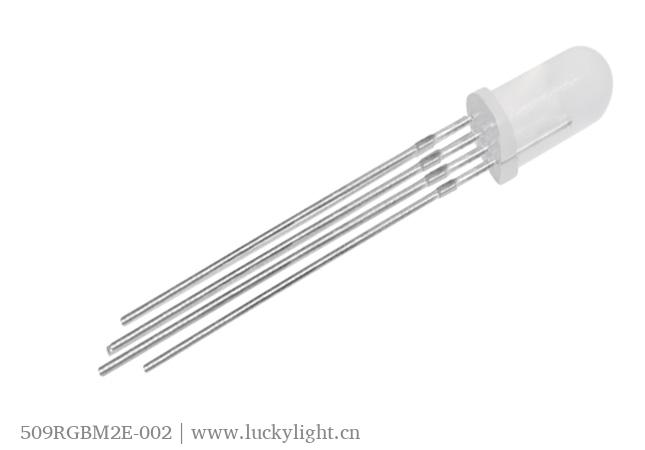

509RGBx2E Series 509RGBM2E-002
  • Super Bright Red
  • Pure Green
  • Blue
White Diffused 5
  • 150
  • 600
  • 200
  • 624
  • 525
  • 470
160 Download

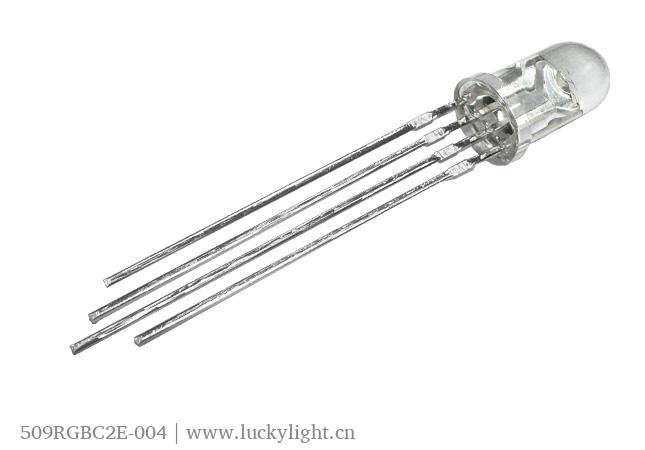

509RGBx2E Series 509RGBC2E-004
  • Super Bright Red
  • Pure Green
  • Blue
Water Clear 5
  • 1000
  • 4000
  • 700
  • 624
  • 525
  • 470
25 Download
509RGBx2E Series 509RGBC2E-002
  • Super Bright Red
  • Pure Green
  • Blue
Water Clear 5
  • 3200
  • 4000
  • 2000
  • 624
  • 525
  • 470
25 Download
309xx2E Series 309YPGM2E-A-3C-G52B
  • Super Bright Yellow
  • Pure Green
White Diffused 3
  • 890
  • 4500
  • 590
  • 525
  • 60
  • 60
Download

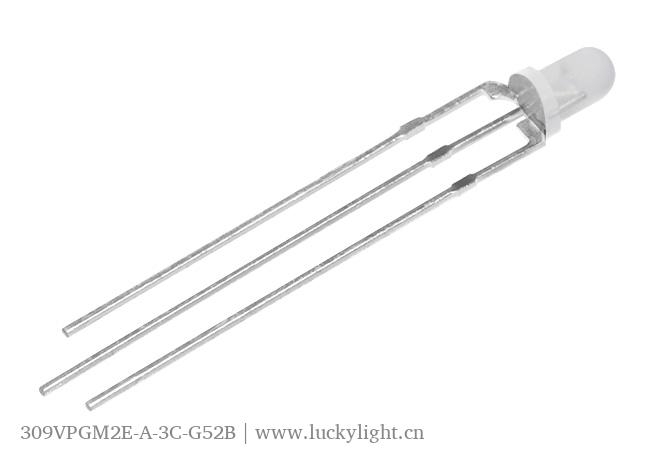

309xx2E Series 309VPGM2E-A-3C-G52B
  • Super Bright Red
  • Pure Green
White Diffused 3
  • 1300
  • 4500
  • 624
  • 525
  • 60
  • 60
Download
509xx2E Series 509YPGM2E-A-3C-G52B
  • Super Bright Yellow
  • Pure Green
White Diffused 5
  • 890
  • 3000
  • 590
  • 525
  • 60
  • 60
Download

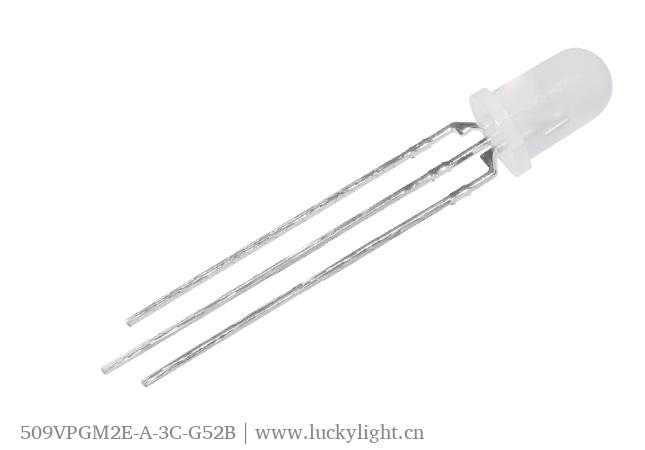

509xx2E Series 509VPGM2E-A-3C-G52B
  • Super Bright Red
  • Pure Green
White Diffused 5
  • 890
  • 3000
  • 624
  • 525
  • 60
  • 60
Download
