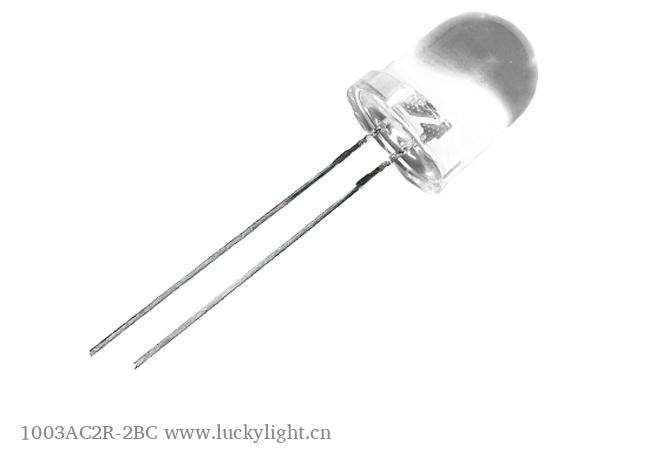

The LuckyLight 1003AC2R-2BC is a 10 mm (T-3 1/4) Super Bright Orange Through-Hole LED featuring a round flange package and water-clear resin body. It provides a typical dominant wavelength of 605 nm, typical luminous intensity of 2200 mcd at IF = 20 mA, and a narrow 20° viewing angle for focused orange light output and clear visual recognition. The LED uses a two-pin radial leaded configuration with 2.54 mm lead spacing and is suitable for PCB through-hole assembly. Its focused optical output makes it suitable for status indicators, function indicators, panel-mount indicators, front panel indication, control panels, and general electronic equipment indication.
