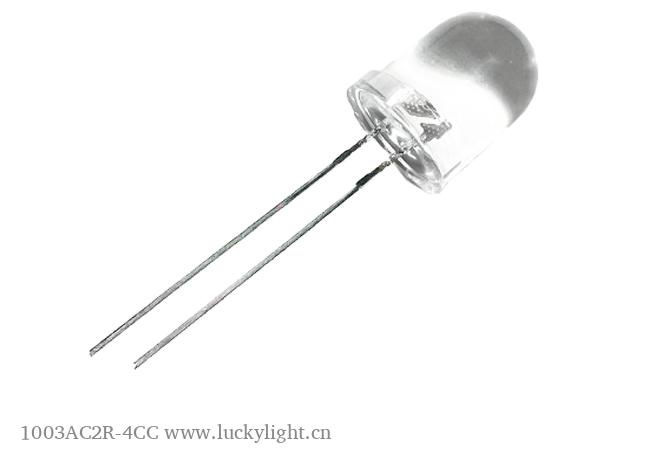

1003AC2R-4CC
Through-hole LED/Round LED
The LuckyLight 1003AC2R-4CC is a 10 mm high-brightness orange through-hole LED designed for applications requiring strong and highly visible orange indication. Featuring a water-clear round lens, a typical 605 nm dominant wavelength, and a narrow 20° viewing angle, this LED delivers focused, high-intensity orange light output. Its robust through-hole package is suitable for advertising displays, backlighting, industrial control panels, equipment indication, and other applications requiring bright and reliable visual signaling.
Features
- 10 mm round through-hole LED
- High-brightness orange emission
- Water-clear lens
- Typical dominant wavelength: 605 nm
- Peak emission wavelength: 610 nm
- Narrow 20° viewing angle
- High luminous intensity output
- Reliable and robust leaded package
- Suitable for PCB through-hole assembly
- Bulk packaging; tape-and-reel available
- RoHS and REACH compliant
Applications
- Advertising displays and signs
- Backlighting applications
- Industrial control panels
- Equipment status indication
- Electronic display equipment
- PCB indication
- Commercial display systems
- General electronic applications
Specifications
| Wavelength λd(nm) | 605 |
| Emitting Color | Super Bright Orange |
| Resin Color | Water Clear |
| Size(mm) | 10 |
| Luminous Intensity Typ.(mcd) | 14000 |
| Viewing Angle 2 θ ½ | 20 |
