1003VC2R-2BC
Through-hole LED/Round LED

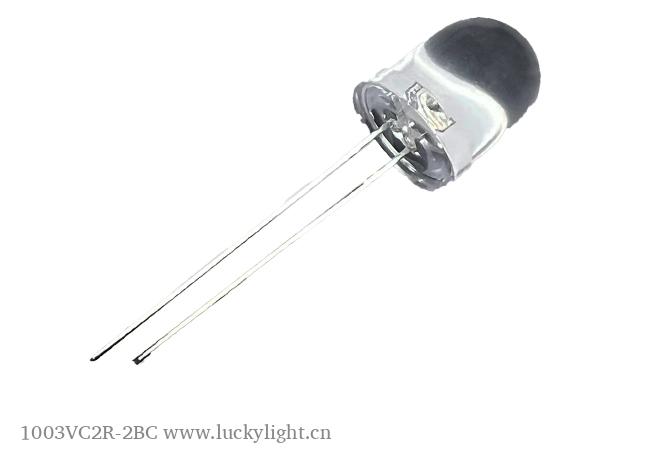

The LuckyLight 1003VC2R-2BC is a 10 mm super bright red through-hole LED designed for clear and reliable visual indication. Featuring a water-clear round lens, a typical 624 nm dominant wavelength, and a narrow 20° viewing angle, this LED provides focused red light output for a wide range of indication and display applications. Its robust through-hole package is suitable for advertising displays, backlighting, status indication, industrial control equipment, and general electronic applications.
Features
- 10 mm round through-hole LED
- Super bright red emission
- Water-clear lens
- Typical dominant wavelength: 624 nm
- Peak emission wavelength: 632 nm
- Narrow 20° viewing angle
- Focused red light output
- Reliable and robust leaded package
- Suitable for PCB through-hole assembly
- Bulk packaging; tape-and-reel available
- RoHS and REACH compliant
Applications
- Advertising displays and signs
- Backlighting applications
- Status and function indicators
- Industrial control panels
- Electronic equipment indication
- PCB indication
- Commercial display equipment
- General electronic applications
Specifications
| Wavelength λd(nm) | 624 |
| Emitting Color | Super Bright Red |
| Resin Color | Water Clear |
| Size(mm) | 10 |
| Luminous Intensity Typ.(mcd) | 2200 |
| Viewing Angle 2 θ ½ | 20 |
