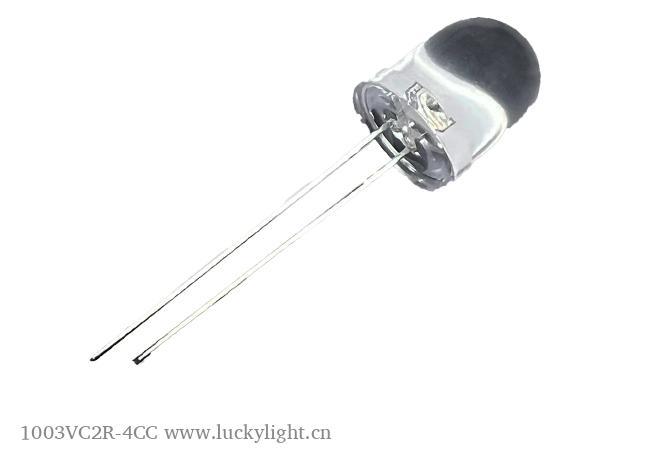

1003VC2R-4CC
Through-hole LED/Round LED
The LuckyLight 1003VC2R-4CC is a 10 mm super bright red through-hole LED designed for applications requiring clear, highly visible red indication. Featuring a water-clear round lens, a typical 624 nm dominant wavelength, and a narrow 20° viewing angle, this LED provides focused, high-intensity red light output. Its robust through-hole package is suitable for advertising displays, backlighting, status indication, industrial control equipment, and other general electronic applications requiring bright and reliable visual indication.
Features
- 10 mm round through-hole LED
- Super bright red emission
- Water-clear lens
- Typical dominant wavelength: 624 nm
- Peak emission wavelength: 632 nm
- Narrow 20° viewing angle
- High luminous intensity output
- Reliable and robust leaded package
- Suitable for PCB through-hole assembly
- Bulk packaging; tape-and-reel available
- RoHS and REACH compliant
Applications
- Advertising displays and signs
- Backlighting applications
- Status and function indicators
- Industrial control panels
- Electronic equipment indication
- PCB indication
- Commercial display equipment
- General electronic applications
Specifications
| Wavelength λd(nm) | 624 |
| Emitting Color | Super Bright Red |
| Resin Color | Water Clear |
| Size(mm) | 10 |
| Luminous Intensity Typ.(mcd) | 11000 |
| Viewing Angle 2 θ ½ | 20 |
