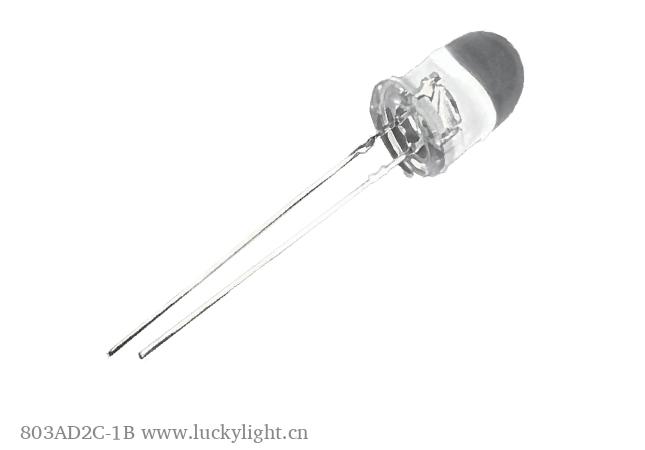

LuckyLight 803AD2C-1B is an 8 mm orange Through-Hole LED in a round flange package with an orange diffused lens. It features a typical dominant wavelength of 605 nm, a typical luminous intensity of 270 mcd at 20 mA, and a 60° viewing angle for uniform visual indication. The LED operates with a typical forward voltage of 2.0 V at 20 mA and uses two-pin radial leads with 2.54 mm spacing for PCB through-hole assembly. It is suitable for status indicators, function indicators, control panel indication, board-level status indication, electronic equipment, and general visual signaling applications.
