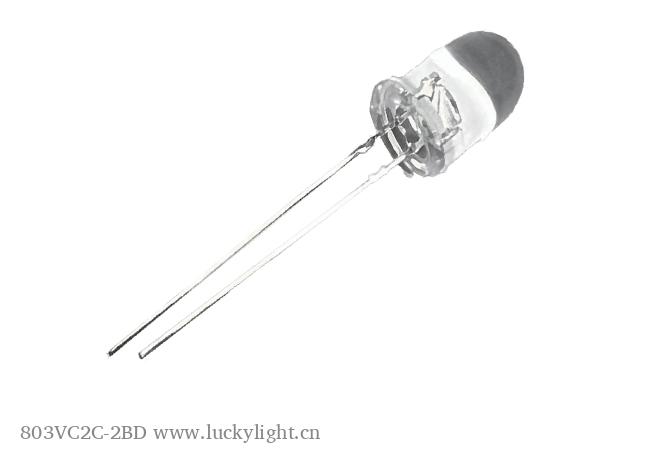

LuckyLight 803VC2C-2BD is an 8 mm red Through-Hole LED in a round flange package with a water-clear lens. It features a typical dominant wavelength of 624 nm, a typical luminous intensity of 2200 mcd at 20 mA, and a 30° viewing angle for focused and clearly recognizable visual indication. The LED operates with a typical forward voltage of 2.0 V at 20 mA and uses two-pin radial leads with 2.54 mm spacing for PCB through-hole assembly. It is suitable for panel indicators, front panel indication, status indication, board-level indication, electronic equipment, and general visual signaling applications.
