Alphanumeric Through-Hole LED Displays are offered in a variety of packages such as Single Digit, Dual Digit, Three Digit and Four Digit options, and color choices include green, red, yellow, white, blue and orange. The alphanumeric through-hole LED displays can display any character of the alphabet, along with numerous other characters and symbols.
Luckylight’s Alphanumeric Through-Hole LED Displays are used in a wide variety of end products including test and measurement equipment, point-of-sale terminals, telecom systems, office equipment, consumer electronics, and medical equipment. These alphanumeric through-hole displays are easily mounted on PC Boards or sockets.
The highly integrated customization capability of alphanumeric through-hole LED displays also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.
Browse our selection, but if you don’t see what you’re looking for please contact us. the parametric filters (▽) on our website can help refine your search results depending on the required specifications.
| Select |
Series
|
Part Number | View Picture |
Emitting Color
|
Face Color
|
Digit Height |
Polarity |
Luminous Intensity Typ.(mcd) |
λd(nm) CIE(x,y) |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|
| KA2-392XXX Series | KA2-392CWB |
|
White | Black | 0.39" (10 mm) | Common Cathode | 70.0 | x=0.30,y=0.31 | Download | |
| KA2-392XXX Series | KA2-392AWB |
|
White | Black | 0.39" (10 mm) | Common Anode | 70.0 | x=0.30,y=0.31 | Download | |
| KA2-392XXX Series | KA2-392CRB |
|
Red | Black | 0.39" (10 mm) | Common Cathode | 17.0 | 630 | Download | |
| KA2-392XXX Series | KA2-392ARB |
|
Red | Black | 0.39" (10 mm) | Common Anode | 17.0 | 630 | Download | |
| KA2-392XXX Series | KA2-392CGB-C20 |
|
Pure Green | Black | 0.39" (10 mm) | Common Cathode | 55.0 | 520 | Download | |
| KA2-392XXX Series | KA2-392AGB-C20 |
|
Pure Green | Black | 0.39" (10 mm) | Common Anode | 55.0 | 520 | Download | |
| KA2-392XXX Series | KA2-392CGB |
|
Yellow Green | Black | 0.39" (10 mm) | Common Cathode | 10.0 | 572 | Download | |
| KA2-392XXX Series | KA2-392AGB |
|
Yellow Green | Black | 0.39" (10 mm) | Common Anode | 10.0 | 572 | Download | |
| KA2-392XXX Series | KA2-392CBB |
|
Blue | Black | 0.39" (10 mm) | Common Cathode | 19.0 | 470 | Download | |
| KA2-392XXX Series | KA2-392ABB |
|
Blue | Black | 0.39" (10 mm) | Common Anode | 19.0 | 470 | Download | |
| KA2-392XXX Series | KA2-392CAB |
|
Orange | Black | 0.39" (10 mm) | Common Cathode | 18.0 | 605 | Download | |
| KA2-392XXX Series | KA2-392AAB |
|
Orange | Black | 0.39" (10 mm) | Common Anode | 18.0 | 605 | Download | |
| KA2-541xxB Series | KA2-541CWB |
|
White | Black | 0.54" (13.80 mm) | Common Cathode | 88.0 | x=0.30, y=0.31 | Download | |
| KA2-541xxB Series | KA2-541AWB |
|
White | Black | 0.54" (13.80 mm) | Common Anode | 88.0 | x=0.30, y=0.31 | Download | |
| KA2-541xxB Series | KA2-541CVB |
|
Orange-Red | Black | 0.54" (13.80 mm) | Common Cathode | 22.0 | 624 | Download | |
| KA2-541xxB Series | KA2-541AVB |
|
Orange-Red | Black | 0.54" (13.80 mm) | Common Anode | 22.0 | 624 | Download | |
| KA2-541xxB Series | KA2-541CGB-G17 |
|
Pure Green | Black | 0.54" (13.80 mm) | Common Cathode | 56 | 517 | Download | |
| KA2-541xxB Series | KA2-541AGB-G17 |
|
Pure Green | Black | 0.54" (13.80 mm) | Common Anode | 56 | 517 | Download | |
| KA2-541xxB Series | KA2-541CGB |
|
Yellow Green | Black | 0.54" (13.80 mm) | Common Cathode | 12.5 | 572 | Download | |
| KA2-541xxB Series | KA2-541AGB |
|
Yellow Green | Black | 0.54" (13.80 mm) | Common Anode | 12.5 | 572 | Download | |
| KA2-541xxB Series | KA2-541CBB |
|
Blue | Black | 0.54" (13.80 mm) | Common Cathode | 19.0 | 470 | Download | |
| KA2-541xxB Series | KA2-541ABB |
|
Blue | Black | 0.54" (13.80 mm) | Common Anode | 19.0 | 470 | Download | |
| KA2-541xxB Series | KA2-541CAB |
|
Orange | Black | 0.54" (13.80 mm) | Common Cathode | 17.6 | 605 | Download | |
| KA2-541xxB Series | KA2-541AAB |
|
Orange | Black | 0.54" (13.80 mm) | Common Anode | 17.6 | 605 | Download | |
| KWA4-542xxB Series | KWA4-542AWB |
|
White | Black | 0.54" (13.80 mm) | Common Anode | 80.0 | x=0.30, y=0.31 | Download | |
| KWA4-542xxB Series | KWA4-542CWB |
|
White | Black | 0.54" (13.80 mm) | Common Cathode | 80.0 | x=0.30, y=0.31 | Download | |
| KWA4-391XXB Series | KWA4-391CWB |
|
White | Black | 0.39" (10 mm) | Common Cathode | 60.0 | x=0.30, y=0.31 | Download | |
| KWA4-391XXB Series | KWA4-391AWB |
|
White | Black | 0.39" (10 mm) | Common Anode | 60.0 | x=0.30, y=0.31 | Download | |
| KWA4-542xxB Series | KWA4-542CVB |
|
Red | Black | 0.54" (13.80 mm) | Common Cathode | 40.0 | 624 | Download | |
| KWA-501xxB Series | KWA-501CVB |
|
Red | Black | 0.50" (12.70 mm) | Common Cathode | 40.0 | 624 | Download | |
| KWA-501xxB Series | KWA-501AVB |
|
Red | Black | 0.50" (12.70 mm) | Common Anode | 40.0 | 624 | Download | |

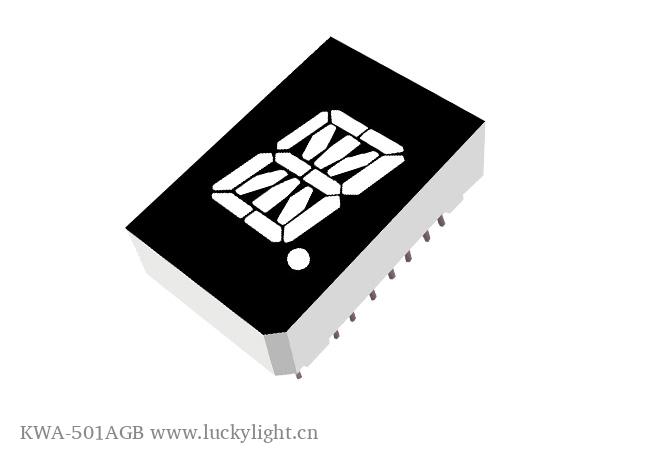

| KWA-501xxB Series | KWA-501CGB |
|
Yellow Green | Black | 0.50" (12.70 mm) | Common Cathode | 14.0 | 572 | Download | |
| KWA-501xxB Series | KWA-501AGB |
|
Yellow Green | Black | 0.50" (12.70 mm) | Common Anode | 14.0 | 572 | Download | |
| KWA-501xxB Series | KWA-501CAB |
|
Orange | Black | 0.50" (12.70 mm) | Common Cathode | 30.0 | 605 | Download | |
| KWA-501xxB Series | KWA-501AAB |
|
Orange | Black | 0.50" (12.70 mm) | Common Anode | 30.0 | 605 | Download | |
| KWA-501xxB Series | KWA-501CBB |
|
Blue | Black | 0.50" (12.70 mm) | Common Cathode | 34.0 | 470 | Download | |
| KWA-501xxB Series | KWA-501ABB |
|
Blue | Black | 0.50" (12.70 mm) | Common Anode | 34.0 | 470 | Download | |
| KWA-801xxA Series | KWA-801CVA |
|
Red | Gray | 0.80" (20.32 mm) | Common Cathode | 50.0 | 624 | Download | |
| KWA-801xxA Series | KWA-801AVA |
|
Red | Gray | 0.80" (20.32 mm) | Common Anode | 50.0 | 624 | Download | |
| KWA-801xxA Series | KWA-801CGA |
|
Yellow Green | Gray | 0.80" (20.32 mm) | Common Cathode | 16.0 | 572 | Download | |
| KWA-801xxA Series | KWA-801AGA |
|
Yellow Green | Gray | 0.80" (20.32 mm) | Common Anode | 16.0 | 572 | Download | |
| KWA-801xxA Series | KWA-801CAA |
|
Orange | Gray | 0.80" (20.32 mm) | Common Cathode | 36.0 | 605 | Download | |
| KWA-801xxA Series | KWA-801AAA |
|
Orange | Gray | 0.80" (20.32 mm) | Common Anode | 36.0 | 605 | Download | |
| KWA-801xxA Series | KWA-801CBA |
|
Blue | Gray | 0.80" (20.32 mm) | Common Cathode | 20.0 | 470 | Download | |
| KWA-801xxA Series | KWA-801ABA |
|
Blue | Gray | 0.80" (20.32 mm) | Common Anode | 20.0 | 470 | Download | |
| KWA-801xxA Series | KWA-801CWA |
|
White | Gray | 0.80" (20.32 mm) | Common Cathode | 130.0 | x=0.30, y=0.31 | Download | |
| KWA-801xxA Series | KWA-801AWA |
|
White | Gray | 0.80" (20.32 mm) | Common Anode | 130.0 | x=0.30, y=0.31 | Download | |
| KWA2-391XXB Series | KWA2-391CRB |
|
Red | Black | 0.39" (10 mm) | Common Cathode | 30.0 | 630 | Download | |
| KWA2-391XXB Series | KWA2-391ARB |
|
Red | Black | 0.39" (10 mm) | Common Anode | 30.0 | 630 | Download | |
| KWA2-391XXB Series | KWA2-391CGB |
|
Yellow Green | Black | 0.39" (10 mm) | Common Cathode | 14.0 | 572 | Download |
