Through-hole round LED are suitable for all applications requiring backlighting and status indication. LEDs make the consumer electronics products and automotive interiors more attractive and characteristic. There are 3 types of technology-based LEDs lamps. The chips with GaP technology are for low to moderate light output requirements, and the ones with AllnGaP and InGaN technologies are for high brightness light output.

Through-hole round LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, 8mm, 10mm, with integrated built-in resistor or low current options, and color choices include green, red, yellow, white, blue, orange and UV.

These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design are balanced to yield superior light output. Several intensity choices are available in each color for increasing design flexibility.

Select Product Line

Part Number View Picture Emitting Color

Resin Color

Size(mm)

Luminous
Intensity
Typ.(mcd)
Wavelength
λd(nm)

Viewing Angle
2 θ ½

DataSheet
100xxx2R Series 1003AD2R-1B
Super Bright Orange
Orange Diffused 10 210 605 60 Download
100xxx2R Series 1003AC2R-4CC
Super Bright Orange
Water Clear 10 14000 605 20 Download
100xxx2R Series 1003AC2R-2BC
Super Bright Orange
Water Clear 10 2200 605 20 Download
100xxx2R Series 1003GD2R-1B
Super Yellow Green
Green diffused 10 45 571 60 Download
100xxx2R Series 1004UVAC2R-Q6C
UV
Water Clear 10 210 λp-400 20 Download
100xxx2R Series 1004UVAC2R-Q5C
UV
Water Clear 10 210 λp-395 20 Download
100xxx2R Series 1004PGD2R-G5-2B
Pure Green
Green diffused 10 2900 525 60 Download

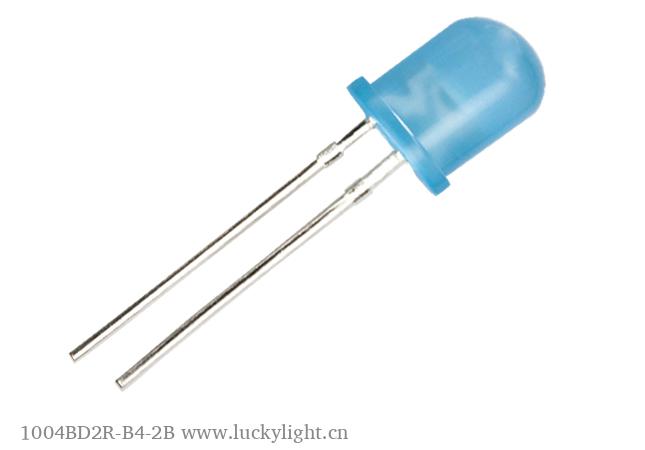

100xxx2R Series 1004BD2R-B4-2B
Blue
Blue Diffused 10 350 470 60 Download

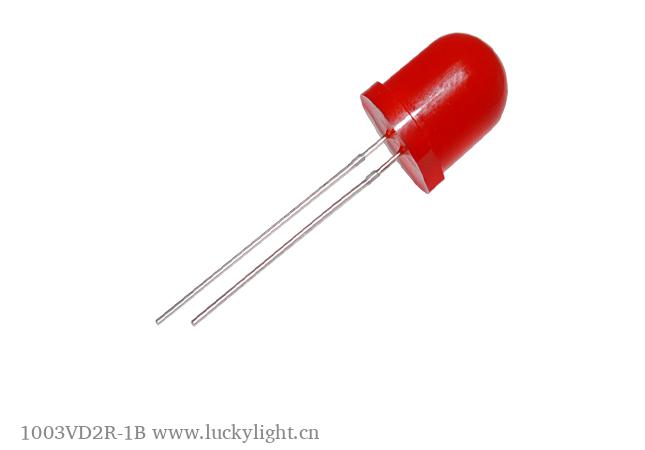

100xxx2R Series 1003VD2R-1B
Super Bright Red
Red Diffused 10 270 624 60 Download
100xxx2R Series 1003VC2R-2BC
Super Bright Red
Water Clear 10 2200 624 20 Download
100xxx2R Series 1004BC2R-B4-2BC
Blue
Water Clear 10 8500 470 20 Download
100xxx2R Series 1003YC2R-4CC
Super Bright Yellow
Water Clear 10 8500 590 20 Download
100xxx2R Series 1003VC2R-4CC
Super Bright Red
Water Clear 10 11000 624 20 Download
100xxx2R Series 1004PGC2R-G5-2BC
Pure Green
Water Clear 10 51000 525 20 Download
100xxx2R Series 1003YC2R-2BC
Super Bright Yellow
Water Clear 10 2900 590 20 Download
100xxx2R Series 1003YD2R-1B
Super Bright Yellow
Yellow Diffused 10 210 590 60 Download
