LuckyLight offers a comprehensive range of multi-color SMD LEDs and multi-color chip LEDs designed for color mixing, multi-state indication, backlighting, and visual signaling. Compatible with high-speed automated SMT assembly and lead-free reflow soldering, our multi-color LED portfolio provides reliable optical and color performance for both standard and customized OEM/ODM applications.
Package Formats & Configurations:
- PLCC & SMD Packages: Available in a variety of industry-standard and custom package sizes, including PLCC-4, PLCC-6, and common footprints such as 3528, 5050, 6028, and 1515, together with other configurations to meet different PCB and optical design requirements.
- Chip LED Packages: Compact surface-mount designs, including 0605, 0805, 1206, 1010, 1204, and other standard or custom footprints for space-constrained and high-density PCB layouts.
- Mounting Orientations: Top-mount, reverse-mount, and right-angle side-emitting configurations, with selected dome-lens options for more focused and directional light output.
Color Combinations & Options:
- Bi-Color: Dual-die combinations such as red/green, red/blue, and yellow/green, with common-anode, common-cathode, or 2-lead inverse-parallel configurations available depending on package design.
- Tri-Color RGB: Red, green, and blue LED combinations for full-color mixing, multi-state indication, backlighting, and decorative lighting.
- Multi-Chip & Hybrid Configurations: RGBW, RGB + IR, and other visible or infrared LED combinations for specialized HMI, optical signaling, and infrared applications. Selected multi-color LEDs are also available with integrated IC drivers for simplified control and addressable lighting applications.
- Customization: Custom binning options are available for wavelength, luminous intensity, forward voltage (VF), and color, together with customized die and color combinations to meet specific OEM/ODM requirements.
Target Applications:
Industrial automation and control panels, instrumentation, medical electronics, telecommunications and networking equipment, transportation electronics, automotive interior displays, membrane switches, button backlighting, status indication, and consumer electronics.
| Select |
Series
|
Part Number | View Picture | Emitting Color | Resin Color |
Size (mm) (length × width × height) |
Luminous Intensity Typ.(mcd) |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|

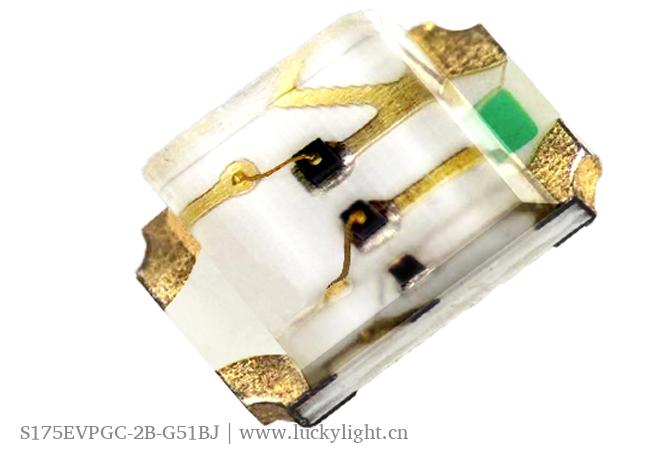

| S175Exx Series | S175EVPGC-2B-G51BJ |
|
|
Water Clear | 2.00 × 1.25 × 0.80 |
|
|
120 | Download | |

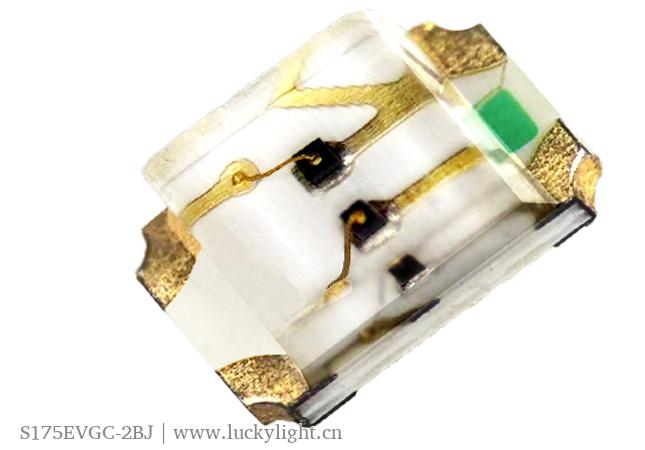

| S175Exx Series | S175EVGC-2BJ |
|
|
Water Clear | 2.00 × 1.25 × 0.80 |
|
|
120 | Download | |

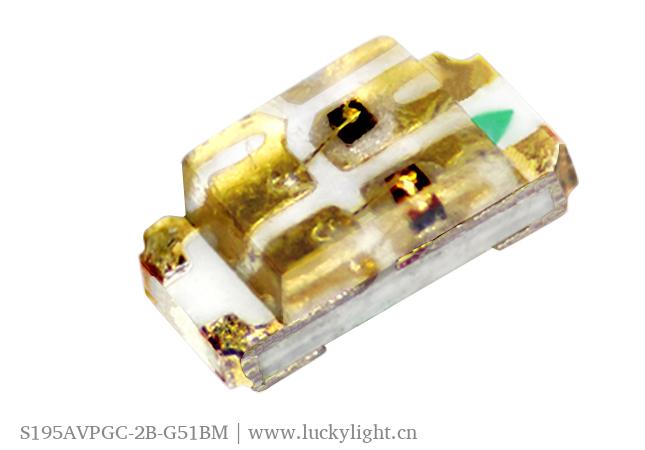

| S195Axx Series | S195AVPGC-2B-G51BM |
|
|
Water Clear | 1.60 × 0.80 × 0.60 |
|
|
120 | Download | |

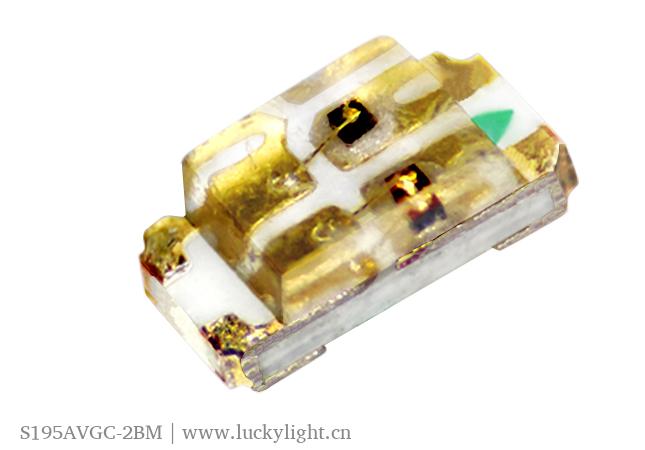

| S195Axx Series | S195AVGC-2BM |
|
|
Water Clear | 1.60 × 0.80 × 0.60 |
|
|
120 | Download | |

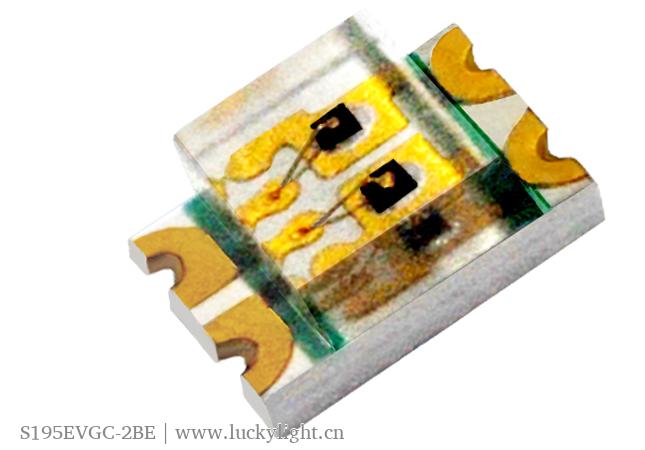

| S195Exx Series | S195EVGC-2BE |
|
|
Water Clear | 1.90 × 1.60 × 0.80 |
|
|
140 | Download | |

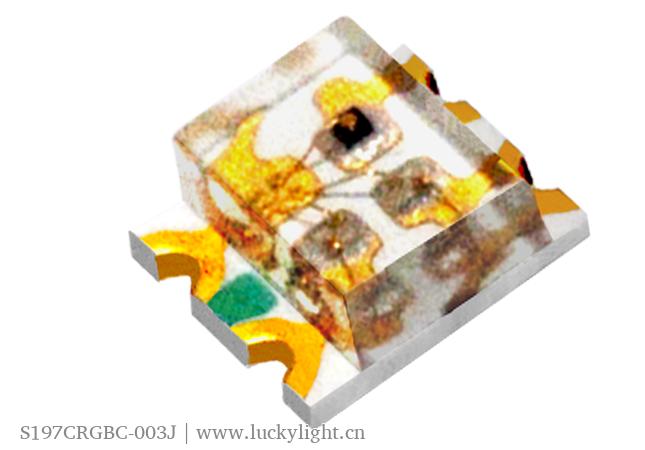

| S197C RGB Series | S197CRGBC-003J |
|
|
Water Clear | 1.60 × 1.50 × 0.60 |
|
|
120 | Download | |

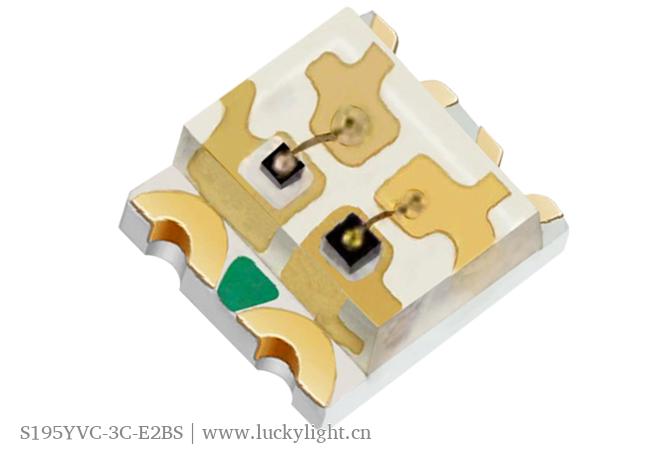

| S195xx Series | S195YVC-3C-E2BS |
|
|
Water Clear | 1.60 × 1.50 × 0.60 |
|
|
140 | Download | |

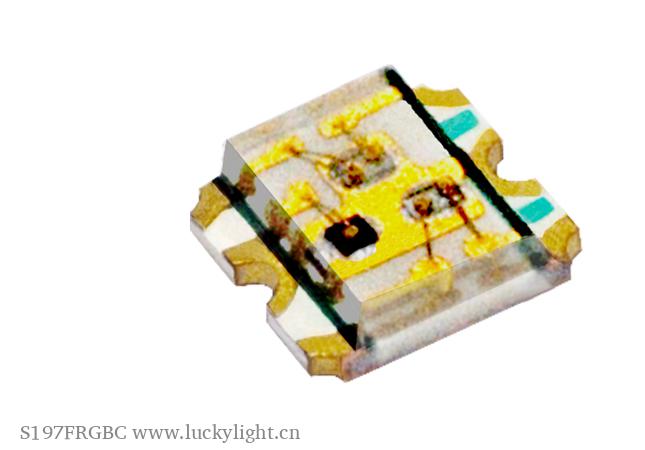

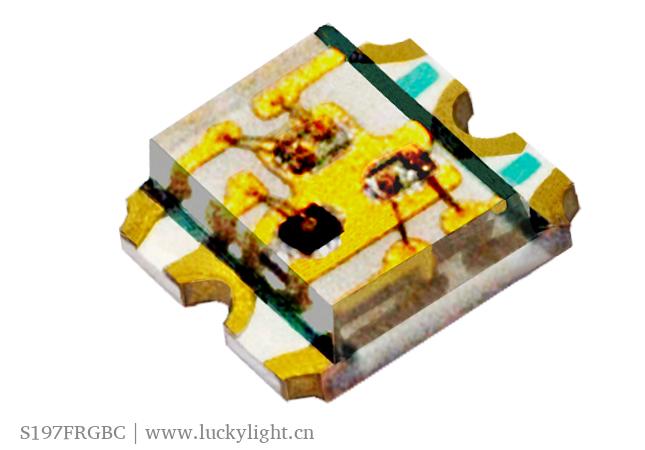

| S197F RGB Series | S197FRGBC |
|
|
Water Clear | 1.60 × 1.60 × 0.35 |
|
|
120 | Download | |

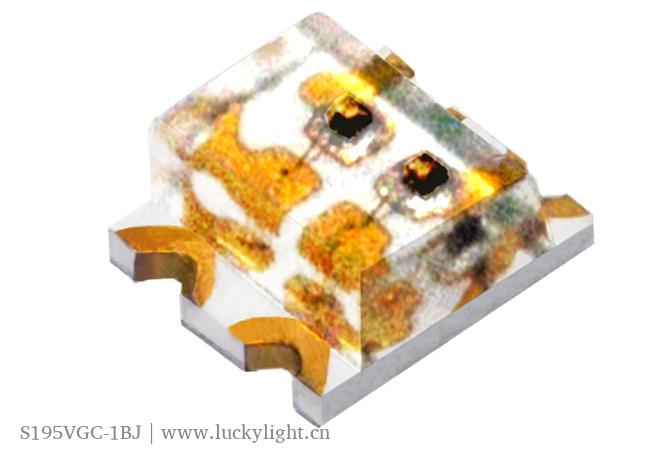

| S195xx Series | S195VGC-1BJ |
|
|
Water Clear | 1.60 × 1.50 × 0.60 |
|
|
140 | Download | |

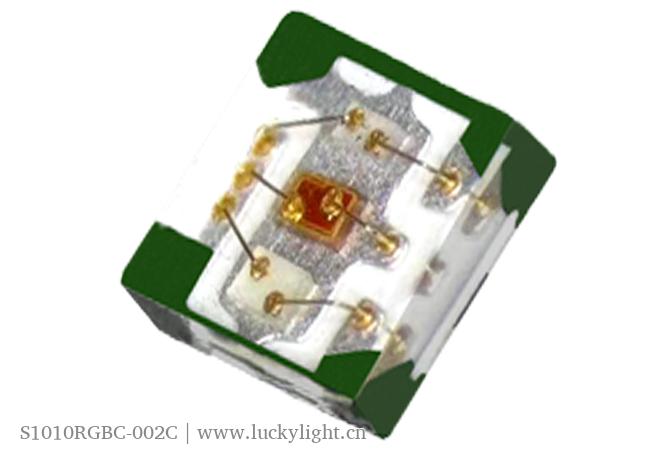

| S1010 RGB Series | S1010RGBC-002C |
|
|
Water Clear | 1.00 × 1.00 × 0.30 |
|
|
120 | Download | |

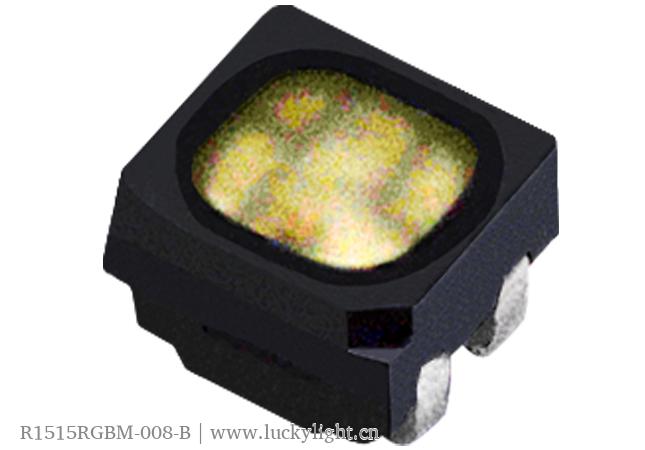

| R1515RGBxx Series | R1515RGBM-008-B |
|
|
White Diffused | 1.55 × 1.50 × 1.00 |
|
|
120 | Download | |

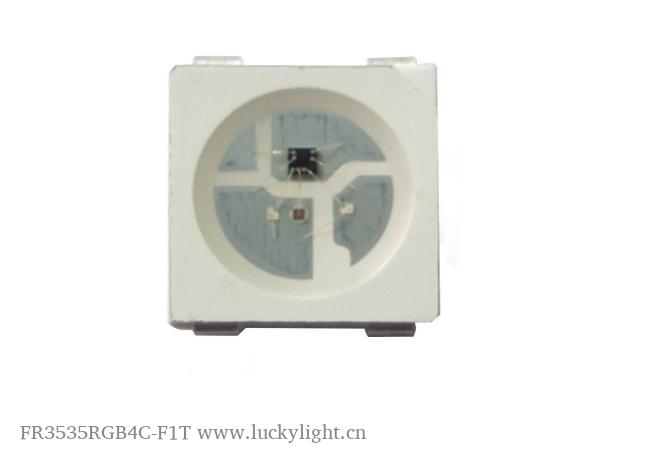

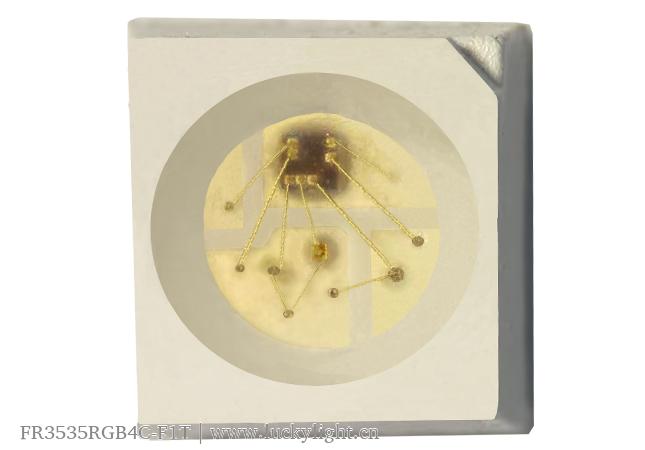

| RGB+IC Series | FR3535RGB4C-F1T |
|
|
Water Clear | 3.70 × 3.50 × 1.30 |
|
|
120 | Download | |

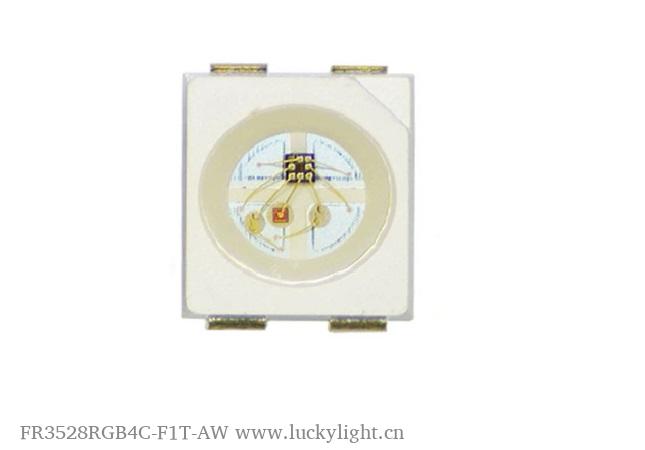

| RGB+IC Series | FR3528RGB4C-F1T-AW |
|
|
Water Clear | 3.50 × 2.80 × 1.80 |
|
|
120 | Download | |
| R3528RGBxx Series | R3528BRGBC-001 |
|
|
Water Clear | 3.50 × 2.80 × 1.80 |
|
|
120 | Download | |
| R3528RGBxx Series | R3528BRGBC-002-ZX |
|
|
Water Clear | 3.50 × 2.80 × 1.80 |
|
|
120 | Download | |
| R3528RGBxx Series | R3528RGBC-008-B |
|
|
Water Clear | 3.50 × 2.80 × 1.90 |
|
|
120 | Download | |
| R3528xxxx Bi-Color Series | R3528VGC-2B |
|
|
Water Clear | 3.50 × 2.80 × 1.90 |
|
|
120 | Download | |
| R5050RGB Series | R5050RGBYW-AK |
|
|
Water Clear | 5.40 × 5.00 × 1.60 |
|
|
120 | Download | |
| R5050RGB Series | R5050RGBC-001 |
|
|
Water Clear | 5.50 × 5.00 × 1.50 |
|
|
120 | Download | |
| R5050RGB Series | R5050RGBWC-001 |
|
|
Water Clear | 5.50 × 5.00 × 1.65 |
|
|
120 | Download | |
| RGB+IC Series | FR5050RGB4C-F1T-AW |
|
|
Water Clear | 5.50 × 5.00 × 1.60 |
|
|
120 | Download | |

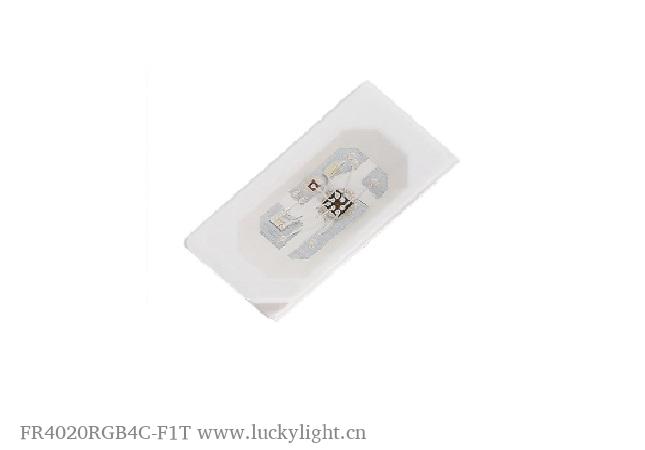

| RGB+IC Series | FR4020RGB4C-F1T |
|
|
Water Clear | 4.00 × 2.00 × 2.00 |
|
|
120 | Download | |

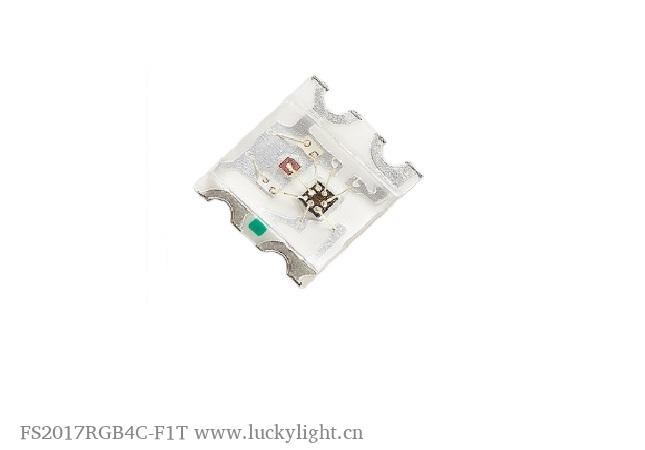

| RGB+IC Series | FS2017RGB4C-F1T |
|
|
Water Clear | 2.00 × 1.70 × 0.85 |
|
|
120 | Download | |

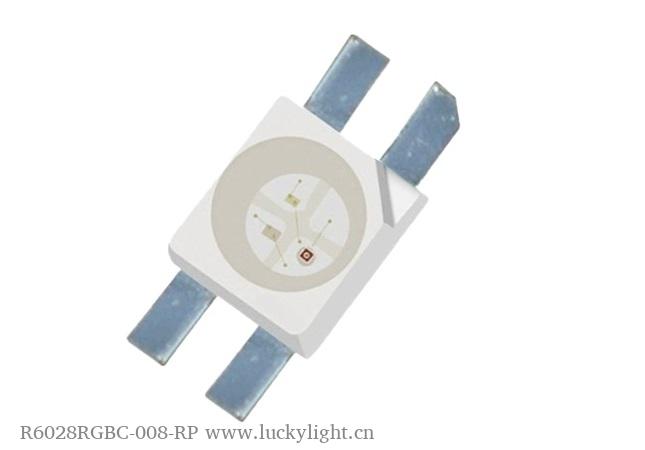

| R6028RGBxx Series | R6028RGBC-008-RP |
|
|
Water Clear | 6.00 × 2.80 × 1.85 |
|
|
120 | Download | |

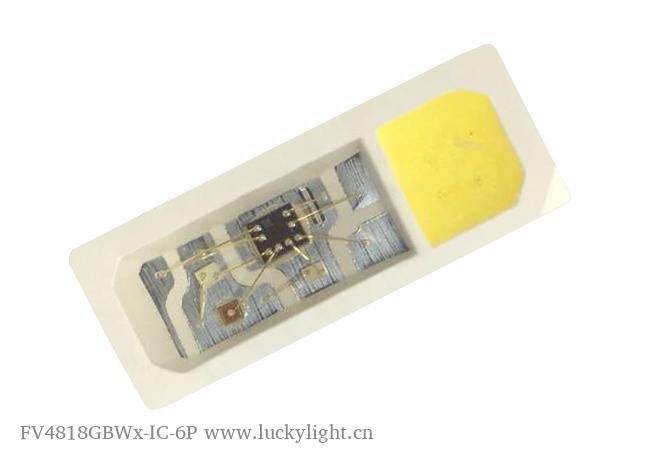

| RGB+IC Series | FV4818RGBW2-F1S-6P |
|
|
Water Clear | 4.80 × 1.80 × 1.60 |
|
|
120 | Download | |
| RGB Side Series | V4509RGBC-01M |
|
|
Water Clear | 4.50 × 0.90 × 1.25 |
|
|
120 | Download | |
| RGB Side Series | V4309RGBC-A-01M |
|
|
Water Clear | 4.30 × 0.90 × 1.10 |
|
|
120 | Download | |
| RGB Side Series | V3806RGBC-001 |
|
|
Water Clear | 3.80 × 0.60 × 1.00 |
|
|
120 | Download | |

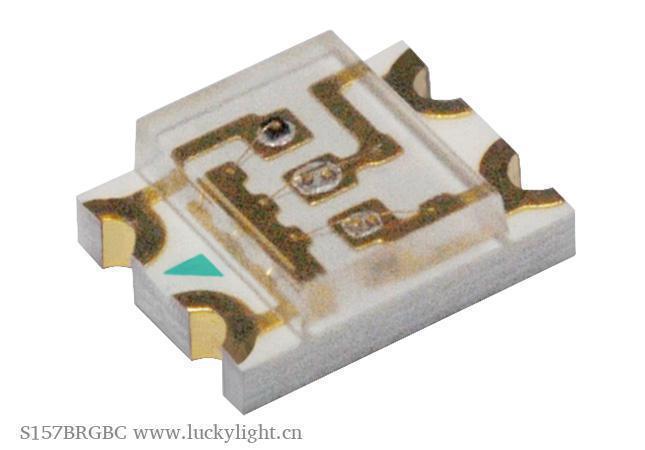

| S157B RGB Series | S157BRGBC-002M |
|
|
Water Clear | 3.20 × 2.70 × 1.10 |
|
|
120 | Download | |
| S155xx Series | S155VGC-2BS |
|
|
Water Clear | 3.20 × 2.70 × 1.10 |
|
|
120 | Download | |
| SR185xx Series | SR185VGC-2BJ |
|
|
Water Clear | 3.20 × 2.70 × 2.20 |
|
|
30 | Download | |
| SR185xx Series | SR185VBC-2B-B41BJ |
|
|
Water Clear | 3.20 × 2.70 × 2.20 |
|
|
30 | Download | |
| SR185xx Series | SR185VGC-2B |
|
|
Water Clear | 3.20 × 2.40 × 2.50 |
|
|
30 | Download | |
| SR187 RGB Series | SR187RGBC |
|
|
Water Clear | 3.20 × 2.40 × 2.50 |
|
|
60 | Download | |

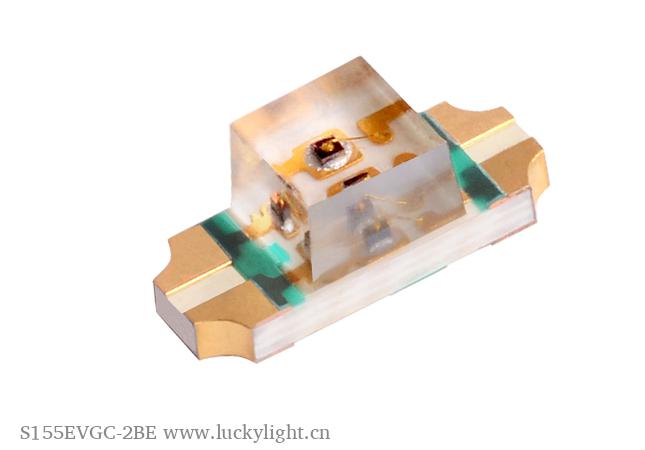

| S155Exx Series | S155EVGC-2BE |
|
|
Water Clear | 3.20 × 1.25 × 1.10 |
|
|
130 | Download | |
| S115Pxx Series | S115PVGC-2BJ |
|
|
Water Clear | 3.20 × 1.00 × 2.00 |
|
|
120 | Download | |
| S117F RGB Series | S117FRGBM-001J |
|
|
White Diffused | 3.20 × 1.00 × 1.50 |
|
|
120 | Download | |
| S117P RGB Series | S117PRGBC |
|
|
Water Clear | 3.00 × 1.00 × 2.00 |
|
|
120 | Download | |
| S355xx Series | S355VGC-2BE |
|
|
Water Clear | 3.00 × 2.50 × 1.50 |
|
|
60 | Download |
